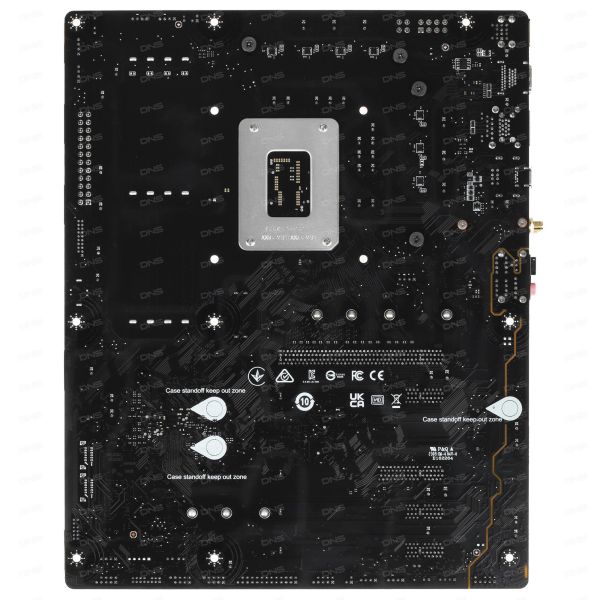

MSI B760 GAMING PLUS WIFI motherboard

Product ID: 57
(1)
SKU Code:
MSI B760 GAMING PLUS WIFI
Specifications:
  • Form factor: Standard-ATX
  • Socket: LGA 1700
  • Supported memory type: DDR5
  • Number of power phases: 12+1+1
  • Country of origin: China
  • Intel Chipset: Intel B760
MSI
$221
Add To Favorites
Compare

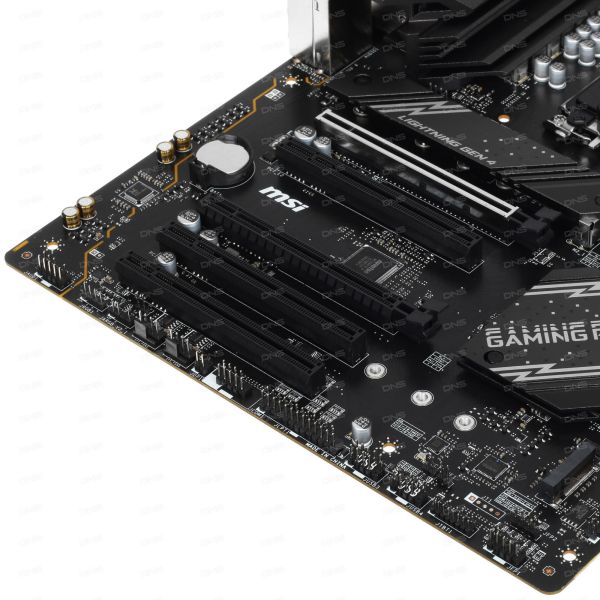

MSI B760 GAMING PLUS WIFI motherboard is designed for gamers and is tuned to achieve high computing potential. It is compatible with Alder Lake and Raptor Lake processors from Intel. The board is equipped with 4 DIMM slots, which allow you to use up to 192 GB of DDR5 RAM. The presence of 5 PCI-E x16 expansion slots allows for the creation of a graphics system from several video cards. With 2 M.2 connectors and 6 SATA ports, you can create spacious storage for games, multimedia files, programs and documents.

The board features a 2.5 Gbps connector for stable access to the Internet via a wired connection. An integrated controller with Wi-Fi and Bluetooth support provides the ability to wirelessly synchronize with network equipment, appliances and mobile devices. Selected tested components and a 14-phase power system mean that the MSI B760 GAMING PLUS WIFI is able to provide stable performance under varying loads.

Seller/manufacturer warranty36 months.
Typemotherboard
ModelMSI B760 GAMING PLUS WIFI
Colorblack
Release year2022
Form factorStandard-ATX
Height305 mm
Width244 mm
SocketLGA 1700
Supported memory typeDDR5
Supported memory form factorDIMM
Number of memory slots4
Number of memory channels2
Maximum memory192 GB
Maximum memory frequency (JEDEC / non-overclocked)5600 MHz
Overclocked RAM frequency5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 6800 MHz
PCI Express Version4.0
PCIe x16 slots1 x PCIe 4.0 (in x4 mode), 1 x PCIe 4.0 (in x16 mode), 3 x PCIe 3.0 (in x1 mode)
SLI/CrossFire supportno
Number of cards in SLI / Crossfireno pcs.
Number of PCI-E x1 slotsno
NVMe supportyes
PCI Express drive version4.0
Number of M.2 connectors2
M.2 (M) slots, PCIe processor lines1 x 2242/2260/2280/22110 (PCIe 4.0 x4)
M.2 (M) slots, PCIe chipset lines1 x 2242/2260/2280 (SATA/PCIe 4.0 x4)
Number of SATA ports4
SATA RAID operating mode0, 1, 5, 10
Other drive connectorsno
USB Type-A Ports2 x USB 3.2 Gen 2, 4 x USB 2.0
USB Type-C ports1 x USB 3.2 Gen 2
Video outputs1 x DisplayPort
Number of network ports (RJ-45)1
Number of analog audio connectors5
Digital audio ports (S/PDIF)TOSLINK (S/PDIF optical)
SMA connectors (for Wi-Fi antenna)yes
PS/2 portscombo
Internal USB Type-A connectors1 x USB 3.2 Gen 1 (19 pin), 2 x USB 2.0 (9 pin)
Internal USB Type-C connectors1 x USB 3.2 Gen 1
CPU cooling power connectors1 x 4 pin (cooler)
Case fan headers (3 pin)no
Connectors 5V-D-G (3 pin) for ARGB backlight2
Connectors 12V-G-R-B (4 pin) for RGB backlight1
M.2 (E) connector for wireless modulesyes
RS-232 (COM) connectoryes
LPT interfaceyes
Sound design7.1
Sound adapter chipsetRealtek ALC897
Network adapter speed2.5 Gbps
Network adapterRealtek RTL8125BG
Wi-Fi standard6E (802.11ax)
Bluetooth version5.3
Main power connector24 pin
CPU power connector8 pin + 4 pin
Number of power phases12+1+1
Passive cooling1 x M.2 slot, VRM zone, chipset
Active coolingno
Buttons on boardno
Illumination of board elementsno
Backlight Sync SoftwareMSI Mystic Light
Additional featuresIntel XMP support, TPM 2.0 support
ContentsWi-Fi antenna, documentation, back plate, SATA cable
Weight with box1.4 kg
Country of originChina
Case fan headers (4 pin)5
Box length36 cm
Box width27 cm
Box height7 cm
Intel ChipsetIntel B760
Compatible Intel processor coresAlder Lake, Raptor Lake, Raptor Lake Refresh
Number of PCB layers6
Connectors for the liquefied liquid pump (4 pin)1
