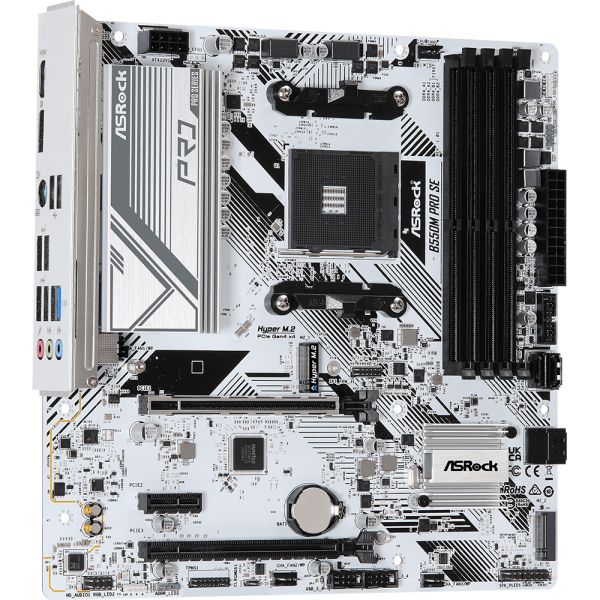

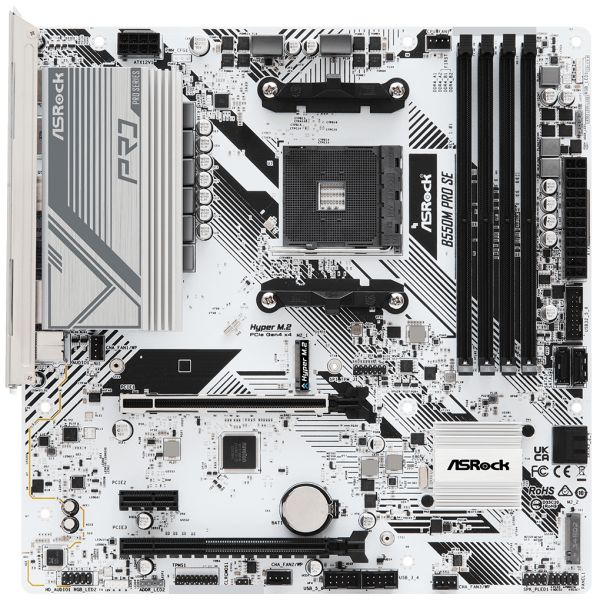

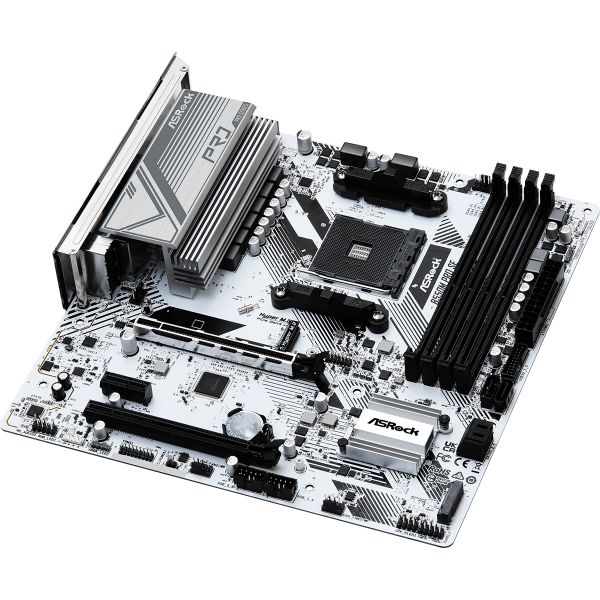

ASRock B550M Pro SE motherboard

Product ID: 36
(1)
SKU Code:
ASRock B550M Pro SE
Specifications:
  • Form factor: Micro-ATX
  • Socket: AM4
  • AMD Chipset: AMD PRO565
  • Supported memory type: DDR4
  • Number of power phases: 6+2+1
Asrock
$135
Add To Favorites
Compare

The ASRock B550M Pro SE motherboard is suitable for assembling a compact but powerful computer, including one with gaming capabilities. The capabilities of the AMD PRO565 chipset are sufficient for the efficient operation of AMD AM4 processors and 128 GB of high-speed DDR4 memory. The maximum memory frequency is very high – 4733+ MHz. The board has a pair of M.2 connectors. Supported SSD form factors – 2280.

The smart 2.5Gbps LAN platform delivers the maximum network performance needed for home networking, content creation, online gaming and high-quality media streaming. Network performance is 2.5 times faster than Gigabit Ethernet, ensuring fast and uncompromising connections for gaming, file transfer and backup.

Conventional PC processors can only use a small portion of video memory with limited performance. AMD Smart Access Memory technology expands data paths to harness the full potential of GPU memory, eliminating latency and improving performance.

Seller/manufacturer warranty36 months.
Typemotherboard
ModelASRock B550M Pro SE
SeriesASRock PRO
Colorwhite
Release year2023
Form factorMicro-ATX
Height244 mm
Width244 mm
SocketAM4
AMD ChipsetAMD PRO565
Compatible AMD processor coresCezanne, Matisse, Matisse 2, Picasso, Renoir, Vermeer
Supported memory typeDDR4
Supported memory form factorDIMM
Number of memory slots4
Number of memory channels2
Maximum memory128 GB
Maximum memory frequency (JEDEC / non-overclocked)3200 MHz
Overclocked RAM frequency3466 MHz, 3600 MHz, 3733 MHz, 3800 MHz, 3866 MHz, 4000 MHz, 4133 MHz, 4200 MHz, 4266 MHz, 4333 MHz, 4400 MHz, 4466 MHz, 4533 MHz, 4600 MHz, 4666 MHz, 4733 MHz
PCI Express Version4.0
PCIe x16 slots1 x PCIe 3.0 (in x4 mode), 1 x PCIe 4.0 (in x16 mode)
SLI/CrossFire supportCrossFire X
Number of cards in SLI / Crossfire2 pcs.
Number of PCI-E x1 slots1
NVMe supportyes
PCI Express drive version4.0
Number of M.2 connectors2
M.2 (M) slots, PCIe processor lines1 x 2280 (PCIe 4.0 x4)
M.2 (M) slots, PCIe chipset lines1 x 2280 (SATA/PCIe 3.0 x2)
Number of SATA ports4
SATA RAID operating mode0, 1, 10
Other drive connectorsno

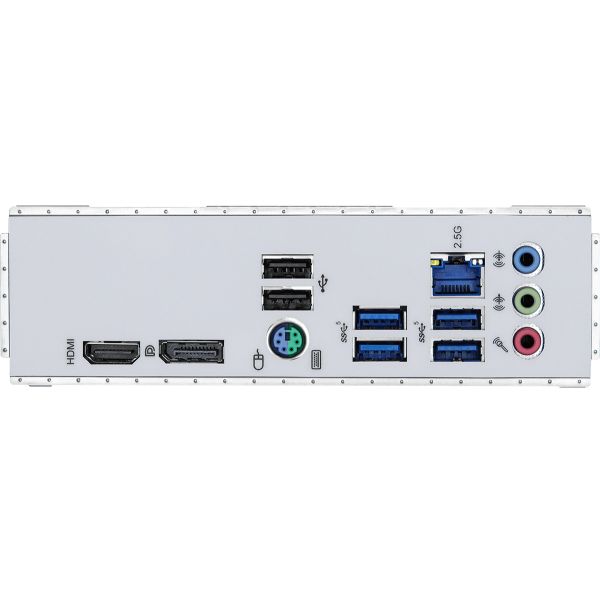

USB Type-A Ports2 x USB 2.0, 4 x USB 3.2 Gen 1
USB Type-C portsno
Video outputs1 x DisplayPort
Number of network ports (RJ-45)1
Number of analog audio connectors3
Digital audio ports (S/PDIF)no
SMA connectors (for Wi-Fi antenna)no
PS/2 portscombo
Internal USB Type-A connectors1 x USB 3.2 Gen 1 (19 pin), 2 x USB 2.0 (9 pin)
Internal USB Type-C connectorsno
CPU cooling power connectors1 x 4 pin (cooler)
Combined connectors for fans and LSS pump (4 pin)3
Case fan headers (3 pin)no
Connectors 5V-D-G (3 pin) for ARGB backlight2
Connectors 12V-G-R-B (4 pin) for RGB backlight2
M.2 (E) connector for wireless modulesno
RS-232 (COM) connectorno
LPT interfaceno
Sound design7.1
Sound adapter chipsetRealtek ALC897
Network adapter speed2.5 Gbps
Network adapterRealtek RTL8125BG
Wi-Fi standardno
Bluetooth versionno
Wireless adapterno
Main power connector24 pin
CPU power connector1 x 8 pin
Number of power phases6+2+1
Passive coolingVRM zone, chipset
Active coolingno
Buttons on boardno
Illumination of board elementsno
Backlight Sync SoftwareASRock Polychrome SYNC
Additional featuresthe board is not compatible with AMD Athlon, Intel XMP support
Contentsdocumentation, SATA cable, fasteners for M.2 connector
Weight with box1.44 kg
