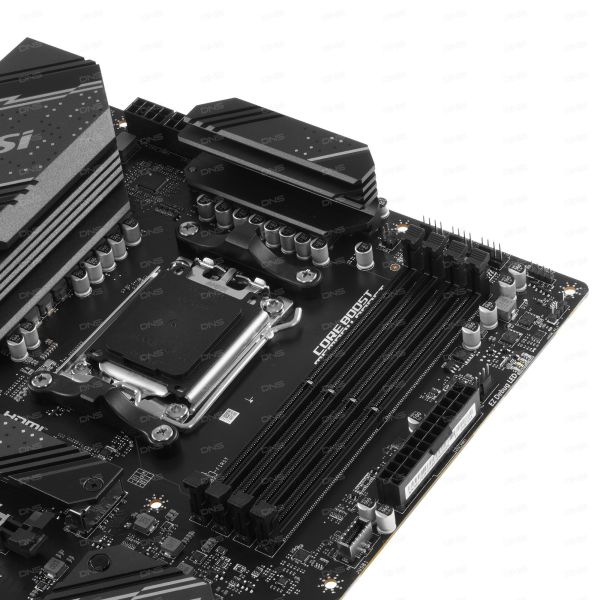

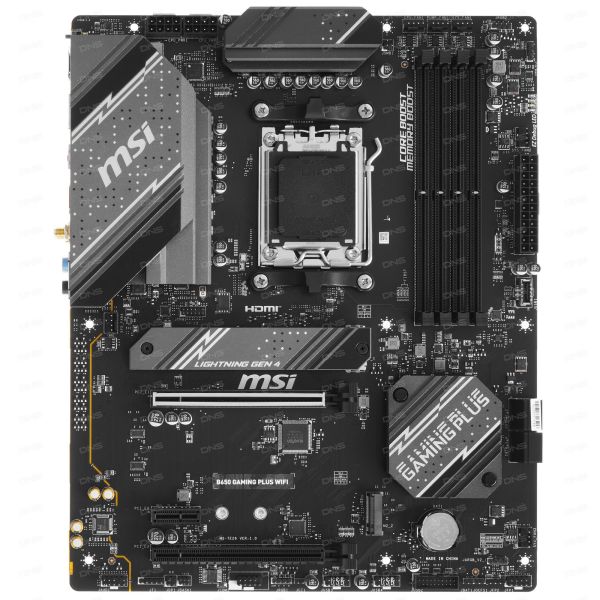

MSI B650 GAMING PLUS WIFI motherboard

Product ID: 56
(1)
SKU Code:
MSI B650 GAMING PLUS WIFI
Specifications:
  • Form factor: Standard-ATX
  • Socket: AM5
  • AMD Chipset: AMD B650
  • Supported memory type: DDR5
  • Number of power phases: 12+2+1
  • Country of origin: China
MSI
$294
Add To Favorites
Compare

MSI B650 GAMING PLUS WIFI motherboard is aimed at gamers who strive to achieve high performance and stability in their computer. It is designed to work together with an AMD AM5 processor. There are 4 slots available for installing DDR5 RAM modules. Discrete graphics systems can be enabled using PCI-E x16 and PCI-E x1 expansion slots. To create spacious storage, there are 2 M.2 connectors and 4 SATA ports.

The 2.5 Gbps LAN connector and wireless module (supports WI-FI 6E and Bluetooth 5.2 standards) guarantee a stable connection to the Internet and compatible devices. Larger cooling radiators remove heat from the chipset, power system, and solid-state drive. Audio Boost delivers clear, rich sound for an immersive gaming experience. Tested components and 6-layer high-copper PCB ensure stable operation of MSI B650 GAMING PLUS WIFI.

Seller/manufacturer warranty36 months.
Typemotherboard
ModelMSI B650 GAMING PLUS WIFI
Colorblack
Release year2022
Form factorStandard-ATX
Height305 mm
Width244 mm
SocketAM5
AMD ChipsetAMD B650
Compatible AMD processor coresRaphael
Supported memory typeDDR5
Supported memory form factorDIMM
Number of memory slots4
Number of memory channels2
Maximum memory192 GB
Maximum memory frequency (JEDEC / non-overclocked)4800 MHz
Overclocked RAM frequency5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 6800 MHz, 7000 MHz, 7200 MHz
PCI Express Version4.0
PCIe x16 slots1 x PCIe 4.0 (in x4 mode), 1 x PCIe 4.0 (in x16 mode)
SLI/CrossFire supportCrossFire X
Number of cards in SLI / Crossfire2 pcs.
Number of PCI-E x1 slots1
NVMe supportyes
PCI Express drive version4.0
Number of M.2 connectors2
M.2 (M) slots, PCIe processor lines1 x 2260/2280 (PCIe 4.0 x4), 1 x 2280/22110 (PCIe 4.0 x4)
M.2 (M) slots, PCIe chipset linesno
Number of SATA ports4
SATA RAID operating mode0, 1
Other drive connectorsno
USB Type-A Ports3 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1
USB Type-C ports1 x USB 3.2 Gen 2x2
Video outputs1 x DisplayPort
Number of network ports (RJ-45)1
Number of analog audio connectors6
Digital audio ports (S/PDIF)no
SMA connectors (for Wi-Fi antenna)yes
PS/2 portsno
Internal USB Type-A connectors1 x USB 3.2 Gen 1 (19 pin), 2 x USB 2.0 (9 pin)
Internal USB Type-C connectors1 x USB 3.2 Gen 2
CPU cooling power connectors1 x 4 pin (cooler)
Case fan headers (3 pin)no
Connectors 5V-D-G (3 pin) for ARGB backlight2
Connectors 12V-G-R-B (4 pin) for RGB backlight2
M.2 (E) connector for wireless modulesyes
RS-232 (COM) connectoryes
LPT interfaceno
Sound design7.1
Sound adapter chipsetRealtek ALC897
Network adapter speed2.5 Gbps
Network adapterRealtek RTL8125BG
Wi-Fi standard6E (802.11ax)
Bluetooth version5.3
Main power connector24 pin
CPU power connector2 x 8 pin
Number of power phases12+2+1
Passive cooling1 x M.2 slot, VRM zone, chipset
Active coolingno
Buttons on boardFlash BIOS button
Illumination of board elementsno
Backlight Sync SoftwareMSI Mystic Light
Additional featuresAMD EXPO support, TPM 2.0 support
ContentsWi-Fi antenna, documentation, SATA cable, set of stickers, fasteners for M.2 connector
Weight with box1.5 kg
Country of originChina
Case fan headers (4 pin)4
Box length34.5 cm
Box width27 cm
Box height6.5 cm
Number of PCB layers6
Connectors for the liquefied liquid pump (4 pin)1
