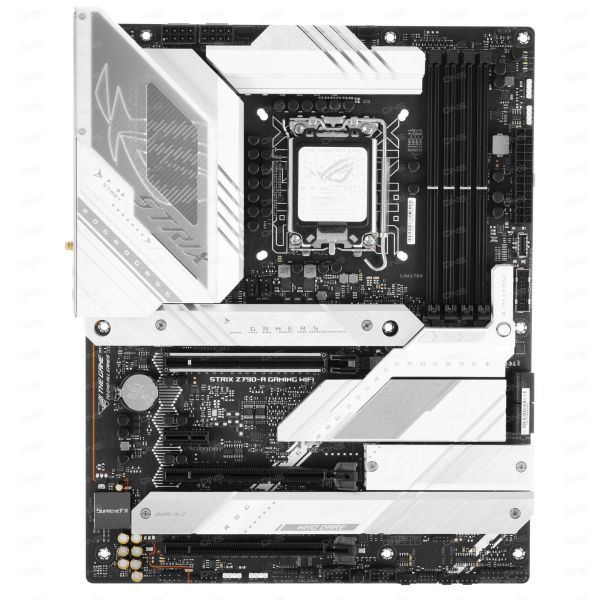

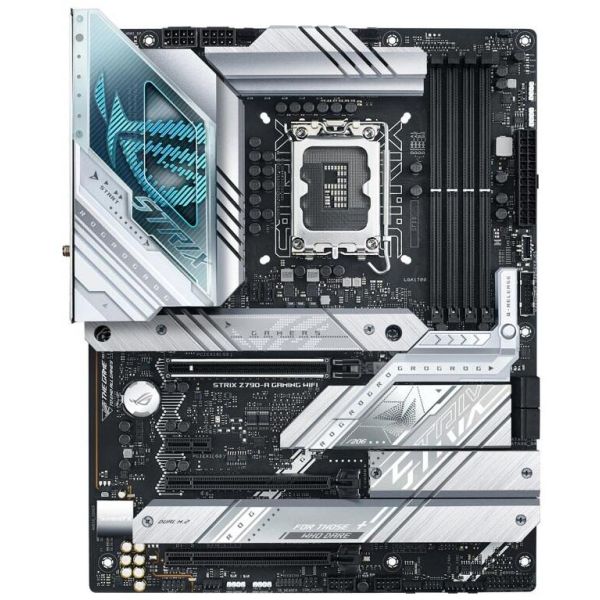

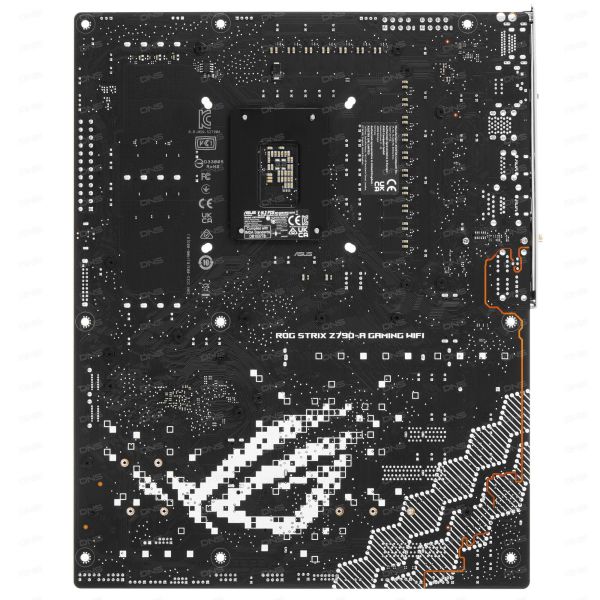

ASUS ROG STRIX Z790-A GAMING WIFI motherboard

Product ID: 42

(1)

ASUS ROG STRIX Z790-A GAMING WIFI motherboard

SKU Code:

ASUS ROG STRIX Z790-A GAMING WIFI

Specifications:

Form factor: Standard-ATX
Socket: LGA 1700
Supported memory type: DDR5
Number of power phases: 16+1
Country of origin: China
Intel Chipset: Intel Z790
All Specifications

$542

Add To Favorites

Compare

ASUS ROG STRIX Z790-A GAMING WIFI motherboard is designed specifically for computer enthusiasts. It offers powerful features that allow you to connect high-performance components. The board is equipped with 4 slots for DDR5 generation RAM modules. Using 3 PCI-E x16 and 1 PCI-E expansion slots, you can connect a discrete graphics adapter. For storage devices, there are 4 M.2 connectors and 4 SATA ports.

The board features a 2.5 Gbps connector and a wireless controller supporting Wi-Fi/Bluetooth standards. Large cooling radiators guarantee stable operation of the component. ASUS ROG STRIX Z790-A GAMING features ROG STRIX-inspired decorative elements and programmable RGB lighting with synchronization function.

Seller/manufacturer warranty	36 months.
Type	motherboard
Model	ASUS ROG STRIX Z790-A GAMING WIFI
Series	ASUS ROG
Color	black
Release year	2023
Form factor	Standard-ATX
Height	305 mm
Width	244 mm
Socket	LGA 1700
Supported memory type	DDR5
Supported memory form factor	DIMM
Number of memory slots	4
Number of memory channels	2
Maximum memory	192 GB
Maximum memory frequency (JEDEC / non-overclocked)	5600 MHz
Overclocked RAM frequency	5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 6800 MHz, 7000 MHz, 7200 MHz, 7400 MHz, 7600 MHz, 7800 MHz
PCI Express Version	5.0
PCIe x16 slots	1 x PCIe 5.0 (in x16 mode), 2 x PCIe 4.0 (in x4 mode)
SLI/CrossFire support	no
Number of cards in SLI / Crossfire	no pcs.
Number of PCI-E x1 slots	1
NVMe support	yes
PCI Express drive version	4.0
Number of M.2 connectors	4
M.2 (M) slots, PCIe processor lines	1 x 2242/2260/2280/22110 (PCIe 4.0 x4)
M.2 (M) slots, PCIe chipset lines	1 x 2242/2260/2280 (PCIe 4.0 x4), 1 x 2242/2260/2280 (SATA/PCIe 4.0 x4), 1 x 2242/2260/2280/22110 (PCIe 4.0 x4)
Number of SATA ports	4
SATA RAID operating mode	0, 1, 5, 10
Other drive connectors	no
USB Type-A Ports	2 x USB 2.0, 2 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1
USB Type-C ports	1 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 2x2
Video outputs	1 x DisplayPort
Number of network ports (RJ-45)	1
Number of analog audio connectors	5
Digital audio ports (S/PDIF)	TOSLINK (S/PDIF optical)
SMA connectors (for Wi-Fi antenna)	yes
PS/2 ports	no
Internal USB Type-A connectors	1 x USB 3.2 Gen 1 (19 pin), 2 x USB 2.0 (9 pin)
Internal USB Type-C connectors	1 x USB 3.2 Gen 2x2
CPU cooling power connectors	2 x 4 pin (cooler)
Case fan headers (3 pin)	no
Connectors 5V-D-G (3 pin) for ARGB backlight	3
Connectors 12V-G-R-B (4 pin) for RGB backlight	1
M.2 (E) connector for wireless modules	yes
RS-232 (COM) connector	no
LPT interface	no
Sound design	7.1
Sound adapter chipset	Realtek ALC4080
Network adapter speed	2.5 Gbps
Wi-Fi standard	6E (802.11ax)
Bluetooth version	5.3
Main power connector	24 pin
CPU power connector	2 x 8 pin
Number of power phases	16+1
Passive cooling	4 x M.2 slot, VRM zone, chipset
Active cooling	no
Buttons on board	BIOS FlashBack button, Clear CMOS button
Illumination of board elements	yes
Backlight Sync Software	ASUS Aura Sync
Additional features	1 connector for connecting expansion cards with Thunderbolt support, Savitech SV3H712 DAC, Intel XMP support
Contents	2 x SATA cable, Wi-Fi antenna, keychain, documentation, set of stickers, cable ties
Weight with box	2.3 kg
Country of origin	China
Case fan headers (4 pin)	5
Box length	35.5 cm
Box width	27.5 cm
Box height	7 cm
Intel Chipset	Intel Z790
Compatible Intel processor cores	Alder Lake, Raptor Lake, Raptor Lake Refresh
Connectors for the liquefied liquid pump (4 pin)	1
