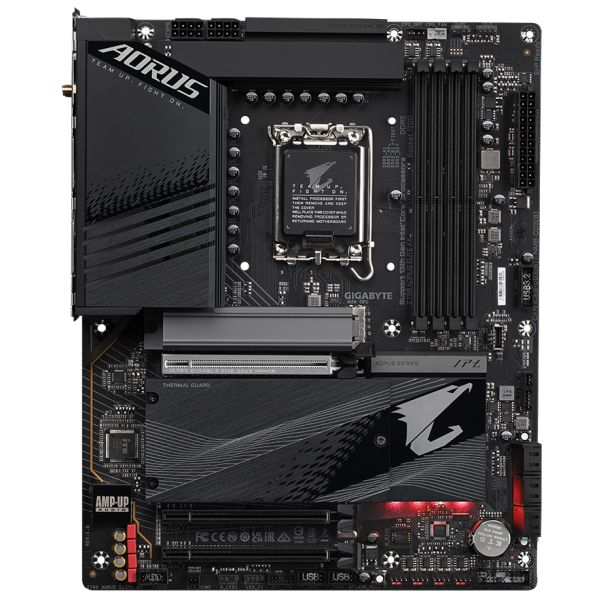

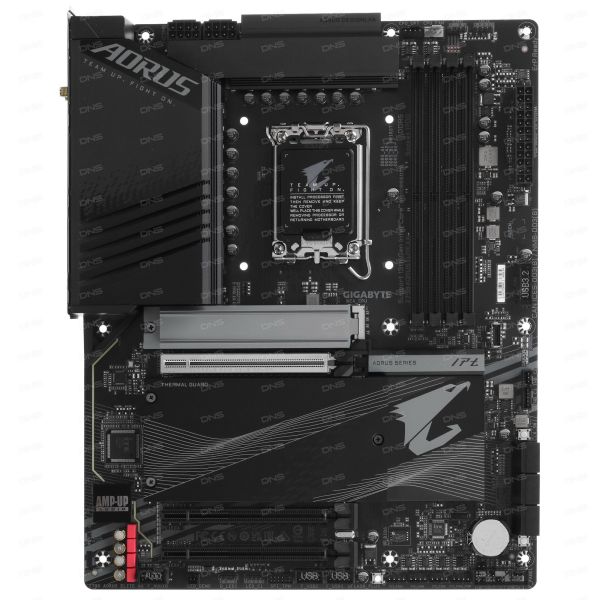

GIGABYTE Z790 AORUS ELITE AX motherboard

Product ID: 54

(2)

GIGABYTE Z790 AORUS ELITE AX motherboard

SKU Code:

GIGABYTE Z790 AORUS ELITE AX

Specifications:

Form factor: Standard-ATX
Socket: LGA 1700
Supported memory type: DDR5
Number of power phases: 16+1+2
Country of origin: China
Intel Chipset: Intel Z790
All Specifications

$375

Add To Favorites

Compare

GIGABYTE Z790 AORUS ELITE AX motherboard is designed for demanding gamers. It comes in a full-size format and offers powerful specs for a gaming build. Among the features of the model are 4 slots for installing up to 192 GB of DDR5 RAM, three PCI-E x16 expansion slots for a graphics adapter, 4 M.2 connectors and 6 SATA slots for drives.

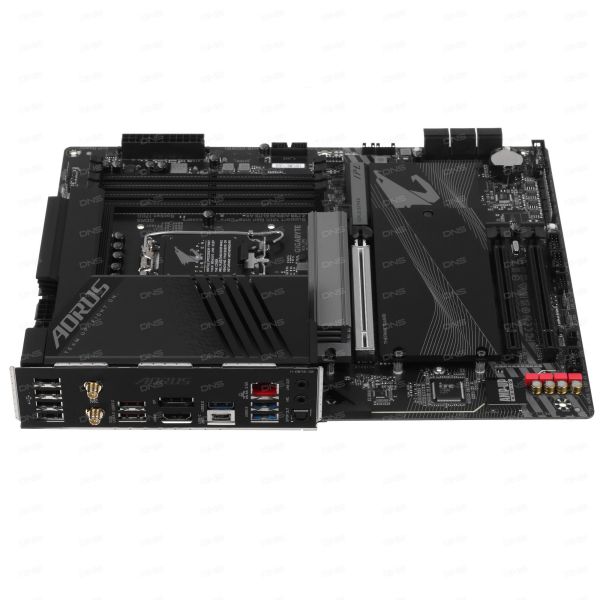

GIGABYTE Z790 AORUS ELITE AX is equipped with a network adapter with a speed of 2.5 Gbps and an integrated module with Wi-Fi/Bluetooth support. There are many connectors on the side: USB, HDMI, DisplayPort, LAN, audio. The board features large cooling radiators and LED lighting with programmable RGB backlighting.

Seller/manufacturer warranty	36 months.
Type	motherboard
Model	GIGABYTE Z790 AORUS ELITE AX
Series	GIGABYTE AORUS
Color	black
Release year	2022
Form factor	Standard-ATX
Height	305 mm
Width	244 mm
Socket	LGA 1700
Supported memory type	DDR5
Supported memory form factor	DIMM
Number of memory slots	4
Number of memory channels	2
Maximum memory	192 GB
Maximum memory frequency (JEDEC / non-overclocked)	4800 MHz
Overclocked RAM frequency	5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 6800 MHz, 7000 MHz, 7200 MHz, 7400 MHz, 7600 MHz
PCI Express Version	5.0
PCIe x16 slots	1 x PCIe 3.0 (in x4 mode), 1 x PCIe 4.0 (in x4 mode), 1 x PCIe 5.0 (in x16 mode)
SLI/CrossFire support	CrossFire X
Number of cards in SLI / Crossfire	2 pcs.
Number of PCI-E x1 slots	no
NVMe support	yes
PCI Express drive version	4.0
Number of M.2 connectors	4
M.2 (M) slots, PCIe processor lines	1 x 2280/22110 (PCIe 4.0 x4)
M.2 (M) slots, PCIe chipset lines	1 x 2280/22110 (SATA/PCIe 4.0 x4), 2 x 2280/22110 (PCIe 4.0 x4)
Number of SATA ports	6
SATA RAID operating mode	0, 1, 5, 10
Other drive connectors	no
USB Type-A Ports	2 x USB 3.2 Gen 2, 3 x USB 3.2 Gen 1, 4 x USB 2.0
USB Type-C ports	1 x USB 3.2 Gen 2x2
Video outputs	1 x DisplayPort
Number of network ports (RJ-45)	1
Number of analog audio connectors	2
Digital audio ports (S/PDIF)	TOSLINK (S/PDIF optical)
SMA connectors (for Wi-Fi antenna)	yes
PS/2 ports	no
Internal USB Type-A connectors	1 x USB 3.2 Gen 1 (19 pin), 2 x USB 2.0 (9 pin)
Internal USB Type-C connectors	1 x USB 3.2 Gen 2
CPU cooling power connectors	1 x 4 pin (cooler), 1 x 4 pin (pump)
Combined connectors for fans and LSS pump (4 pin)	1
Case fan headers (3 pin)	no
Connectors 5V-D-G (3 pin) for ARGB backlight	2
Connectors 12V-G-R-B (4 pin) for RGB backlight	2
M.2 (E) connector for wireless modules	yes
RS-232 (COM) connector	no
LPT interface	no
Sound design	7.1
Network adapter speed	2.5 Gbps
Wi-Fi standard	6E (802.11ax)
Bluetooth version	5.3
Wireless adapter	Intel Wi-Fi 6E AX211
Main power connector	24 pin
CPU power connector	2 x 8 pin
Number of power phases	16+1+2
Passive cooling	4 x M.2 slot, VRM zone, chipset
Active cooling	no
Buttons on board	Q-Flash Plus button, Clear CMOS button, Reboot button
Illumination of board elements	yes
Backlight Sync Software	GIGABYTE RGB Fusion
Additional features	2 connectors for connecting expansion cards with Thunderbolt support, Intel XMP support
Contents	2 x SATA cable, Wi-Fi antenna, documentation, front panel connector
Weight with box	2 kg
Country of origin	China
Case fan headers (4 pin)	3
Box length	34 cm
Box width	27 cm
Box height	8.5 cm
Intel Chipset	Intel Z790
Compatible Intel processor cores	Alder Lake, Raptor Lake, Raptor Lake Refresh
Number of PCB layers	6
