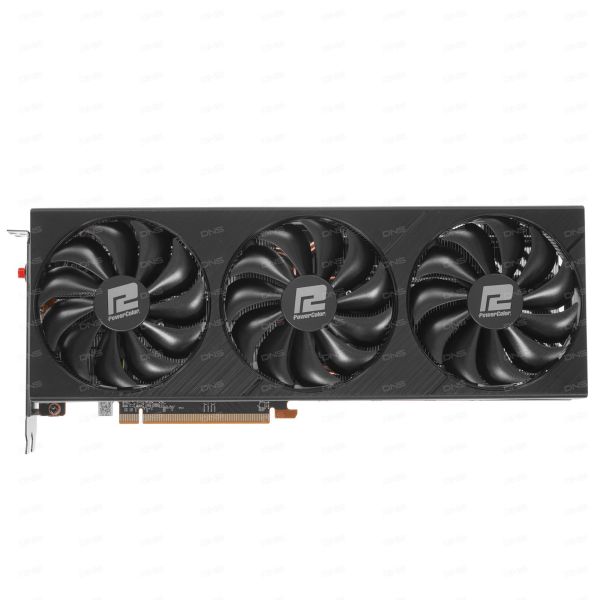

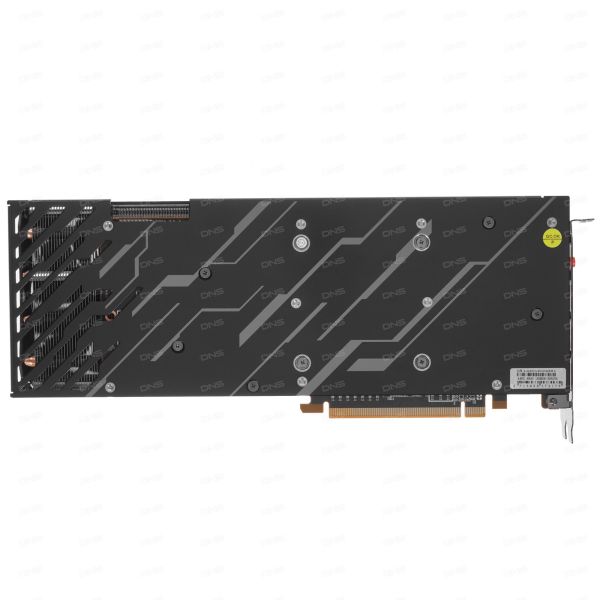

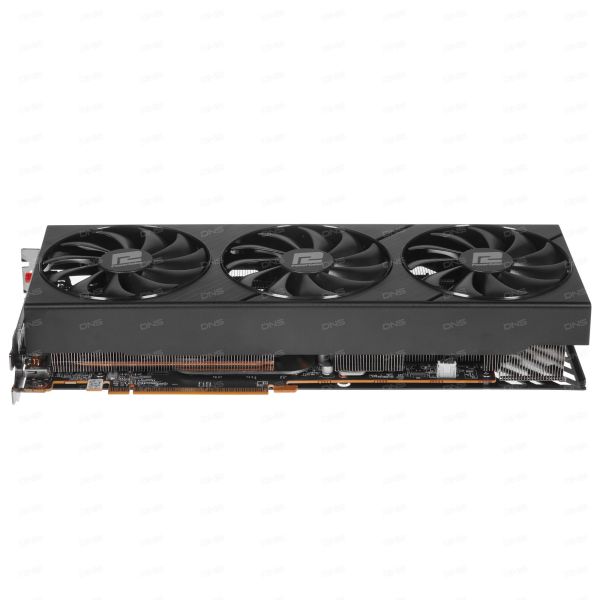

PowerColor AMD Radeon RX 6800 Fighter graphics card [AXRX 6800 16GBD6-3DH/OC]

Product ID: 85
SKU Code:
AXRX 6800 16GBD6-3DH/OC
Specifications:
  • GPU: Radeon RX 6800
  • Microarchitecture: AMD RDNA 2
  • Video memory capacity: 16 GB
  • Memory type: GDDR6
PowerColor
$1,325
Add To Favorites
Compare

The PowerColor AMD Radeon RX 6800 Fighter [AXRX 6800 16GBD6-3DH/OC] graphics card offers high performance and, thanks to its capabilities, can be an excellent choice for gaming and workstations. This model is based on RDNA 2 technology and uses the Navi 21 computing unit, which, together with 16 GB of memory, can provide high performance for any task. An important feature of the model is support for ray tracing, which provides realistic images in games. In addition, the model is distinguished by an effective cooling system, which is represented by 3 axial fans with a special blade geometry.

The PowerColor AMD Radeon RX 6800 Fighter video card is made in a classic case and is equipped with autonomous backlighting. The length of the graphics accelerator is 300 mm and the thickness is 50 mm. For installation, 2.5 bays are used, and the connection is made via PCI-E 4.0 and 2 8-pin connectors for power. In addition, the case has various video connectors for external monitors.

Seller/manufacturer warranty24 months.
Typevideo card
ModelPowerColor AMD Radeon RX 6800 Fighter
Manufacturer codeAXRX 6800 16GBD6-3DH/OC
Colorblack
Designed for mining (cryptocurrency mining)no
LHRno
GPURadeon RX 6800
MicroarchitectureAMD RDNA 2
Process technology7 nm
Standard video chip operating frequency1700 MHz
Turbo frequency2155 MHz
Number of all-purpose processors (ALU)3840
Number of texture units240
Number of rasterization units96
Ray tracing supportyes
Hardware-accelerated ray tracing (RT cores)60
Tensor coresno
Video memory capacity16 GB
Memory typeGDDR6
Memory bus width256 bits
Maximum memory bandwidth512 GB/sec
Effective memory frequency16000 MHz

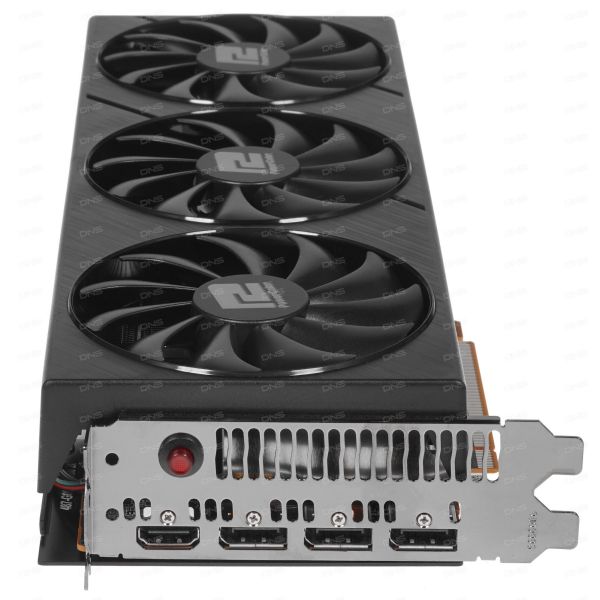

Type and number of video connectors3 x DisplayPort, HDMI
HDMI Version2.1
DisplayPort Version1.4
Number of monitors connected simultaneously4
Maximum resolution7680x4320 (8K Ultra HD)
Connection interfacePCI-E 4.0
Connector form factorPCIe x16
Number of PCI Express lanes16
Additional power connectors2 x 8 pin
Recommended power supply650 W
Cooling typeactive air
Type and number of installed fans3 axial
Liquid cooling radiatorno
Illumination of video card elementsyes
RGB Syncno
LCD displayno
BIOS switchyes
Features, additionallyInfinity Cache - 128 MB
Contentsdocumentation
Low Profile CardNo
Number of occupied expansion slots2.5
Video card length300 mm
Graphics card width120 mm
Video card thickness50 mm
Weight1137 g
Country of originChina
