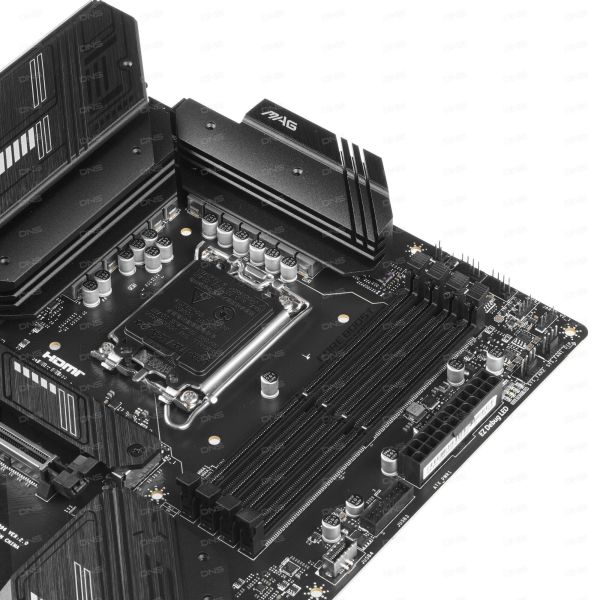

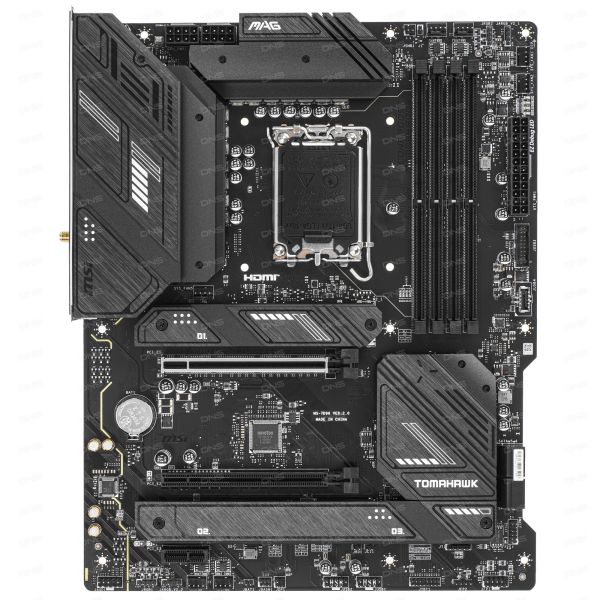

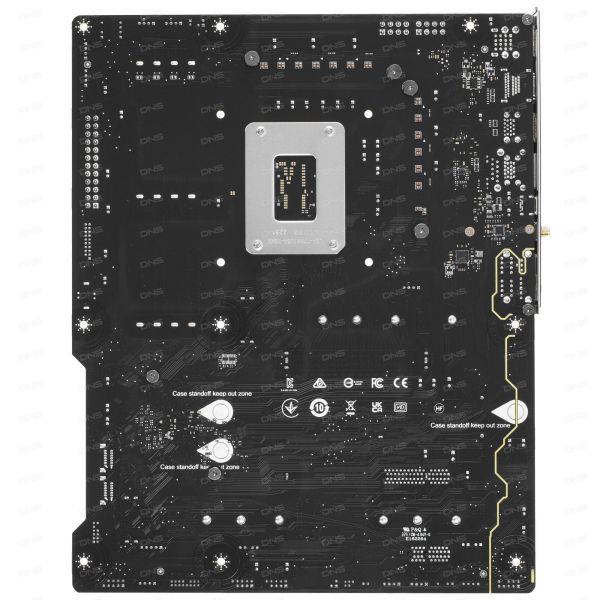

MSI MAG B760 TOMAHAWK WIFI motherboard

Product ID: 61

SKU Code:

MSI MAG B760 TOMAHAWK WIFI

Specifications:

Form factor: Standard-ATX
Socket: LGA 1700
Supported memory type: DDR5
Number of power phases: 12+1+1
Country of origin: China
Intel Chipset: Intel B760
All Specifications

$281

Add To Favorites

Compare

MSI MAG B760 TOMAHAWK WIFI motherboard is compatible with 12/13/14 generation Intel Core processor and offers powerful performance for building a gaming system. It is equipped with 4 slots for installing DDR5 RAM, 2 PCI-E x16 expansion slots, 3 M.2 connectors and 4 SATA ports. The board has a 2.5 Gbps network connector and a wireless communication module.

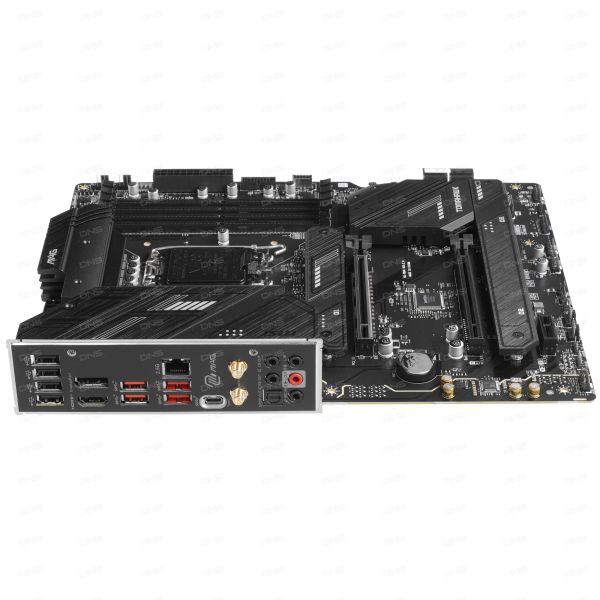

MSI MAG B760 TOMAHAWK is equipped with a cooling system with large radiators. Reliable components and a 14-phase power system ensure stable operation of the motherboard. Wired interfaces include USB ports, DisplayPort and HDMI video outputs, and audio connectors.

Seller/manufacturer warranty	36 months.
Type	motherboard
Model	MSI MAG B760 TOMAHAWK WIFI
Series	MSI MAG
Color	black
Release year	2023
Form factor	Standard-ATX
Height	305 mm
Width	244 mm
Socket	LGA 1700
Supported memory type	DDR5
Supported memory form factor	DIMM
Number of memory slots	4
Number of memory channels	2
Maximum memory	192 GB
Maximum memory frequency (JEDEC / non-overclocked)	5600 MHz
Overclocked RAM frequency	5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 6800 MHz, 7000 MHz
PCI Express Version	5.0
PCIe x16 slots	1 x PCIe 3.0 (in x4 mode), 1 x PCIe 5.0 (in x16 mode)
SLI/CrossFire support	no
Number of cards in SLI / Crossfire	no pcs.
Number of PCI-E x1 slots	1
NVMe support	yes
PCI Express drive version	4.0
Number of M.2 connectors	3
M.2 (M) slots, PCIe processor lines	1 x 2242/2260/2280/22110 (PCIe 4.0 x4)
M.2 (M) slots, PCIe chipset lines	1 x 2242/2260/2280 (PCIe 4.0 x4), 1 x 2242/2260/2280 (SATA/PCIe 4.0 x4)
Number of SATA ports	4
SATA RAID operating mode	0, 1, 5, 10
Other drive connectors	no
USB Type-A Ports	4 x USB 2.0, 4 x USB 3.2 Gen 2
USB Type-C ports	1 x USB 3.2 Gen 2x2
Video outputs	1 x DisplayPort
Number of network ports (RJ-45)	1
Number of analog audio connectors	5
Digital audio ports (S/PDIF)	TOSLINK (S/PDIF optical)
SMA connectors (for Wi-Fi antenna)	yes
PS/2 ports	no
Internal USB Type-A connectors	1 x USB 3.2 Gen 1 (19 pin), 2 x USB 2.0 (9 pin)
Internal USB Type-C connectors	1 x USB 3.2 Gen 2
CPU cooling power connectors	1 x 4 pin (cooler)
Case fan headers (3 pin)	no
Connectors 5V-D-G (3 pin) for ARGB backlight	2
Connectors 12V-G-R-B (4 pin) for RGB backlight	2
M.2 (E) connector for wireless modules	yes
RS-232 (COM) connector	no
LPT interface	no
Sound design	7.1
Sound adapter chipset	Realtek ALC897
Network adapter speed	2.5 Gbps
Wi-Fi standard	6E (802.11ax)
Bluetooth version	5.3
Main power connector	24 pin
CPU power connector	2 x 8 pin
Number of power phases	12+1+1
Passive cooling	3 x M.2 slot, VRM zone, chipset
Active cooling	no
Buttons on board	no
Illumination of board elements	no
Backlight Sync Software	MSI Mystic Light
Additional features	Intel XMP support, TPM 2.0 support
Contents	Wi-Fi antenna, documentation, SATA cable, set of stickers
Weight with box	1.76 kg
Country of origin	China
Case fan headers (4 pin)	5
Box length	34.5 cm
Box width	27.3 cm
Box height	7.3 cm
Intel Chipset	Intel B760
Compatible Intel processor cores	Alder Lake, Raptor Lake, Raptor Lake Refresh
Number of PCB layers	6
Connectors for the liquefied liquid pump (4 pin)	1
