ASUS TUF GAMING B650M-PLUS WIFI motherboard
-10%

Product ID: 46
SKU Code:
ASUS TUF GAMING B650M-PLUS WIFI
Specifications:
  • Form factor: Micro-ATX
  • Socket: AM5
  • AMD Chipset: AMD B650
  • Supported memory type: DDR5
  • Number of power phases: 12+2
  • Country of origin: China
ASUS
$345
$310
Add To Favorites
Compare

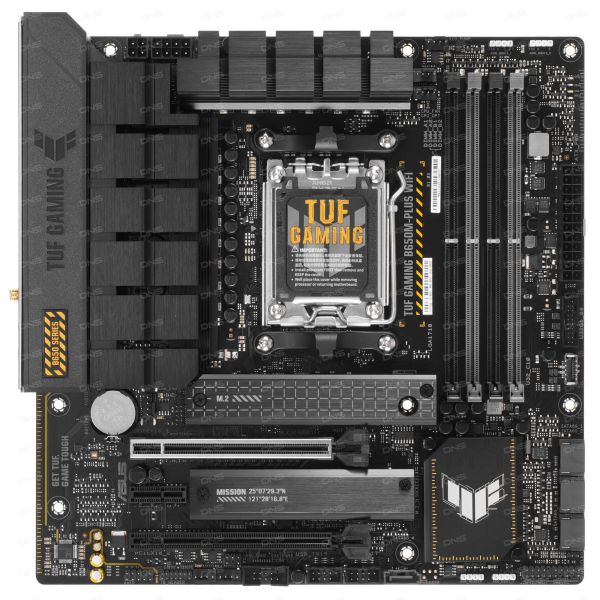

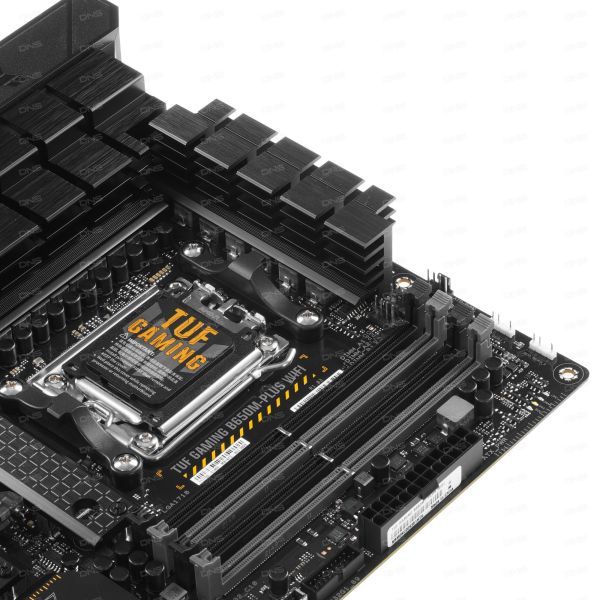

The ASUS TUF GAMING B650M-PLUS WIFI motherboard features compact dimensions and high-performance features for a powerful gaming PC. It is made in black and yellow colors and features a reliable element base within the TUF line. To connect the necessary components, there are 4 bays for DDR5 modules, an AM5 processor socket, 2 PCI-E x16 expansion slots for graphics cards, 2 M.2 connectors and 4 SATA slots for storage devices.

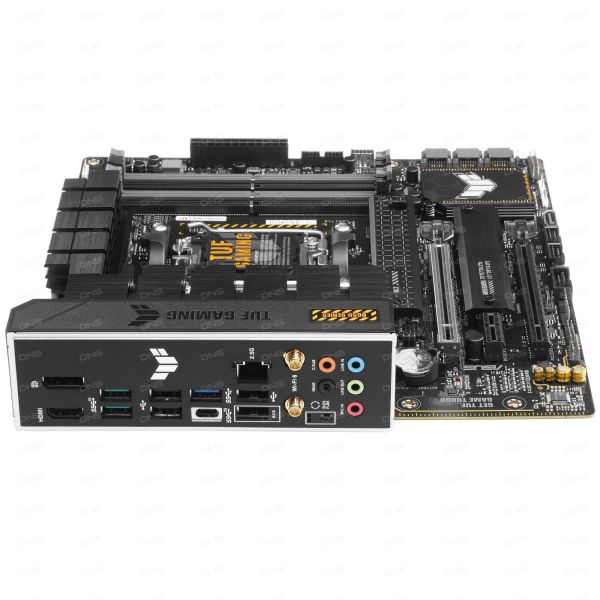

ASUS TUF GAMING B650M-PLUS is equipped with a 2.5 Gbps LAN adapter and a wireless synchronization module with Wi-Fi/Bluetooth support. On the side there are USB Type-A and Type-C ports, DisplayPort and HDMI video outputs, and 3.5 mm audio connectors. Using the Flash BIOS button, you can make settings in the BIOS system.

Seller/manufacturer warranty36 months.
Typemotherboard
ModelASUS TUF GAMING B650M-PLUS WIFI
SeriesASUS TUF GAMING
Colorblack
Release year2022
Form factorMicro-ATX
Height244 mm
Width244 mm
SocketAM5
AMD ChipsetAMD B650
Compatible AMD processor coresRaphael
Supported memory typeDDR5
Supported memory form factorDIMM
Number of memory slots4
Number of memory channels2
Maximum memory192 GB
Maximum memory frequency (JEDEC / non-overclocked)5200 MHz
Overclocked RAM frequency5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 6800 MHz, 7000 MHz, 7200 MHz, 7600 MHz
PCI Express Version4.0
PCIe x16 slots1 x PCIe 4.0 (in x4 mode), 1 x PCIe 4.0 (in x16 mode)
SLI/CrossFire supportno
Number of cards in SLI / Crossfireno pcs.
Number of PCI-E x1 slots1
NVMe supportyes
PCI Express drive version4.0
Number of M.2 connectors2
M.2 (M) slots, PCIe processor lines1 x 2242/2260/2280 (PCIe 4.0 x4), 1 x 2242/2260/2280 (PCIe 5.0 x4)
M.2 (M) slots, PCIe chipset linesno
Number of SATA ports4
SATA RAID operating mode0, 1, 10
Other drive connectorsno
USB Type-A Ports1 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2, 4 x USB 2.0
USB Type-C ports1 x USB 3.2 Gen 2x2
Video outputs1 x DisplayPort
Number of network ports (RJ-45)1
Number of analog audio connectors5
Digital audio ports (S/PDIF)no
SMA connectors (for Wi-Fi antenna)yes
PS/2 portsno
Internal USB Type-A connectors1 x USB 3.2 Gen 1 (19 pin), 2 x USB 2.0 (9 pin)
Internal USB Type-C connectors1 x USB 3.2 Gen 1
CPU cooling power connectors2 x 4 pin (cooler)
Case fan headers (3 pin)no
Connectors 5V-D-G (3 pin) for ARGB backlight3
Connectors 12V-G-R-B (4 pin) for RGB backlight1
M.2 (E) connector for wireless modulesyes
RS-232 (COM) connectoryes
LPT interfaceno
Sound design7.1
Network adapter speed2.5 Gbps
Wi-Fi standard6 (802.11ax)
Bluetooth version5.2
Main power connector24 pin
CPU power connector8 pin + 4 pin
Number of power phases12+2
Passive cooling2 x M.2 slot, VRM zone, chipset
Active coolingno
Buttons on boardBIOS FlashBack button
Illumination of board elementsno
Backlight Sync SoftwareASUS Aura Sync
Additional features1 connector for connecting expansion cards with Thunderbolt support, AMD EXPO support
Contents2 x SATA cable, Wi-Fi antenna, documentation, set of stickers
Weight with box1.65 kg
Country of originChina
Case fan headers (4 pin)3
Box length28 cm
Box width27.5 cm
Box height7 cm
Connectors for the liquefied liquid pump (4 pin)1
