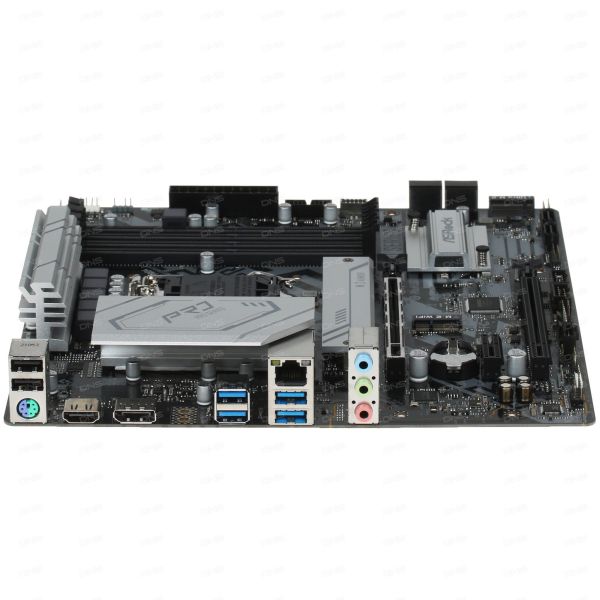

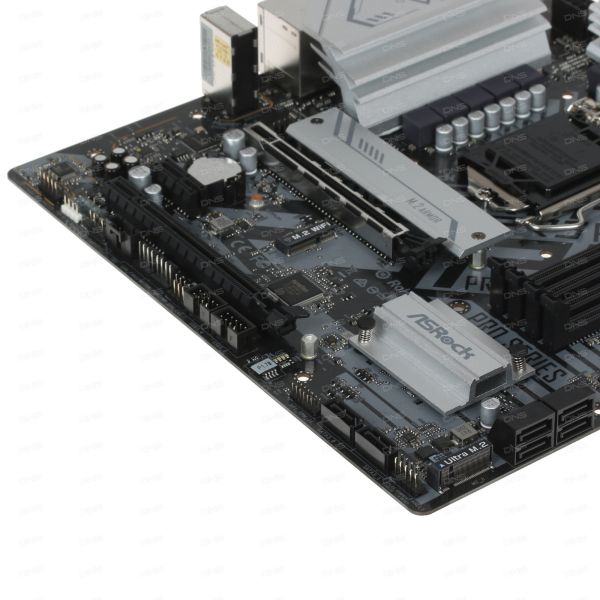

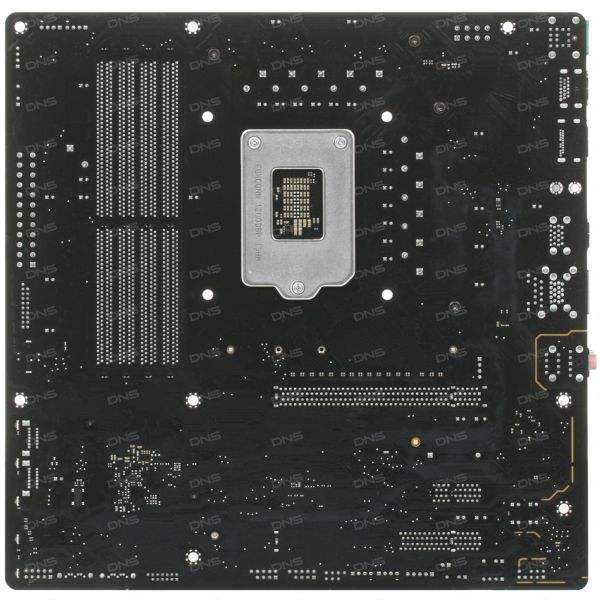

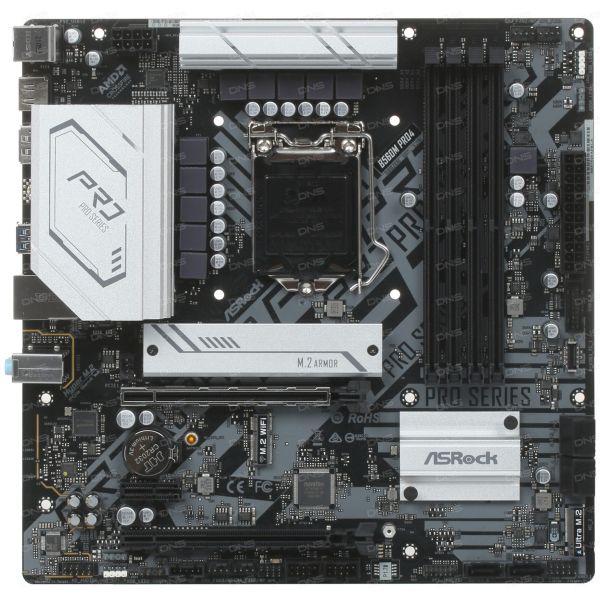

ASRock B560M Pro4 motherboard

Product ID: 38

SKU Code:

ASRock B560M Pro4

Specifications:

Form factor: Micro-ATX
Socket: LGA 1200
Supported memory type: DDR4
Number of power phases: 8
Country of origin: China
Intel Chipset: Intel B560
All Specifications

$135

Add To Favorites

Compare

ASRock B560M Pro4 motherboard provides a high-performance and reliable foundation for building a mid-range gaming hardware platform. It is based on the Intel B560 chipset and is suitable for installing an Intel processor. To connect components, there are 4 DIMM DDR4 slots, 3 PCI-E expansion slots, 2 M.2 connectors and 6 SATA slots.

Connecting peripheral devices is possible thanks to popular ports and connectors. Notable features of the ASRock B560M Pro4 include proprietary programmable backlighting. A reliable element base guarantees stable operation and a long service life.

Seller/manufacturer warranty	36 months.
Type	motherboard
Model	ASRock B560M Pro4
Series	ASRock PRO
Release year	2021
Form factor	Micro-ATX
Height	244 mm
Width	244 mm
Socket	LGA 1200
Supported memory type	DDR4
Supported memory form factor	DIMM
Number of memory slots	4
Number of memory channels	2
Maximum memory	128 GB
Maximum memory frequency (JEDEC / non-overclocked)	3200 MHz
Overclocked RAM frequency	3466 MHz, 3600 MHz, 3733 MHz, 3866 MHz, 4000 MHz, 4133 MHz, 4400 MHz, 4666 MHz, 4800 MHz
PCI Express Version	4.0
PCIe x16 slots	1 x PCIe 3.0 (in x4 mode), 1 x PCIe 4.0 (in x16 mode)
SLI/CrossFire support	CrossFire X
Number of cards in SLI / Crossfire	no pcs.
Number of PCI-E x1 slots	1
NVMe support	yes
PCI Express drive version	4.0
Number of M.2 connectors	2
M.2 (M) slots, PCIe processor lines	1 x 2242/2260/2280 (PCIe 4.0 x4)
M.2 (M) slots, PCIe chipset lines	1 x 2280 (SATA/PCIe 3.0 x4)
Number of SATA ports	6
SATA RAID operating mode	no
Other drive connectors	no
USB Type-A Ports	2 x USB 2.0, 4 x USB 3.2 Gen 1
USB Type-C ports	no
Video outputs	1 x DisplayPort
Number of network ports (RJ-45)	1
Number of analog audio connectors	3
Digital audio ports (S/PDIF)	no
SMA connectors (for Wi-Fi antenna)	no
PS/2 ports	combo
Internal USB Type-A connectors	1 x USB 3.2 Gen 1 (19 pin), 2 x USB 2.0 (9 pin)
Internal USB Type-C connectors	1 x USB 3.2 Gen 1
CPU cooling power connectors	1 x 4 pin (cooler), 1 x 4 pin (cooler/pump)
Combined connectors for fans and LSS pump (4 pin)	3
Case fan headers (3 pin)	no
Connectors 5V-D-G (3 pin) for ARGB backlight	2
Connectors 12V-G-R-B (4 pin) for RGB backlight	2
M.2 (E) connector for wireless modules	yes
RS-232 (COM) connector	no
LPT interface	no
Sound design	7.1
Sound adapter chipset	Realtek ALC897
Network adapter speed	1 Gbps
Network adapter	Intel I219-V
Wi-Fi standard	no
Bluetooth version	no
Wireless adapter	no
Main power connector	24 pin
CPU power connector	1 x 8 pin
Number of power phases	8
Passive cooling	1 x M.2 slot, VRM zone, chipset
Active cooling	no
Buttons on board	no
Illumination of board elements	yes
Backlight Sync Software	ASRock Polychrome SYNC
Additional features	1 connector for expansion cards with Thunderbolt support, Intel XMP support
Contents	2 x SATA cable, disk with software, fasteners for M.2 connector, bracket for vertical fixation of M.2 drive
Weight with box	1.24 kg
Country of origin	China
Box length	28 cm
Box width	26 cm
Box height	6 cm
Intel Chipset	Intel B560
Compatible Intel processor cores	Comet Lake, Rocket Lake
