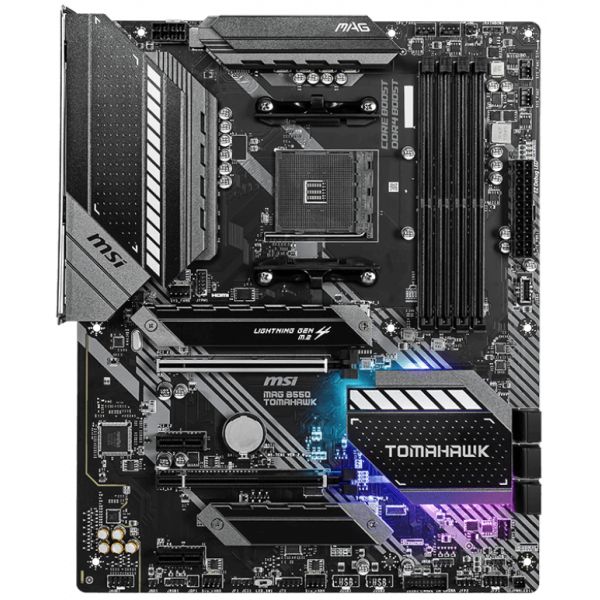

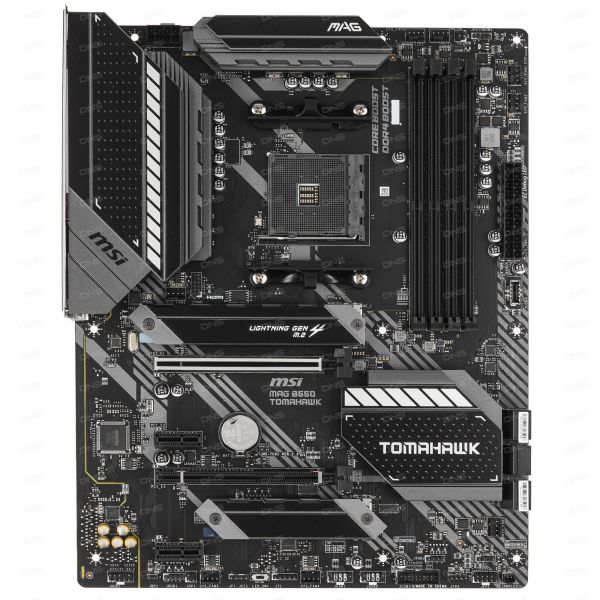

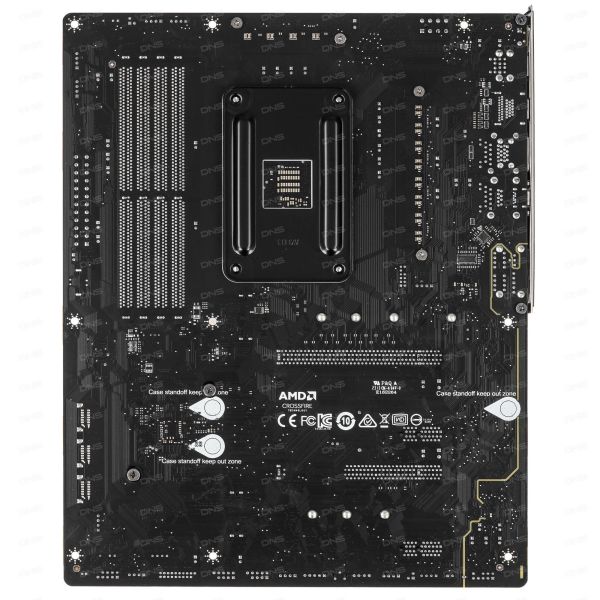

MSI MAG B550 TOMAHAWK motherboard

Product ID: 58
(1)
SKU Code:
MSI MAG B550 TOMAHAWK
Specifications:
  • Form factor: Standard-ATX
  • Socket: AM4
  • AMD Chipset: AMD B550
  • Supported memory type: DDR4
  • Number of power phases: 12
  • Country of origin: China
MSI
$203
Add To Favorites
Compare

The MSI MAG B550 TOMAHAWK motherboard has ample capabilities for creating a productive system for any task. The platform complies with the Standard-ATX format, which opens up wide possibilities for computer configuration. Thanks to first-class components, the model is highly reliable, and the stylish design of the case, combining unusual shapes and RGB lighting, will be an excellent visual addition to your build.

MSI MAG B550 TOMAHAWK motherboard is based on AMD B550 chipset and socket AM4 for a wide range of processors. Thanks to 2 PCI-E 3.0 x16 slots and support for CrossFire X technology, the platform allows you to use multiple video cards at once for the best performance. The maximum amount of RAM can reach 128 GB of DDR4 type - 4 DIMM slots are provided for its installation. The file system can be represented by 6 SATA drives and 2 M.2 drives.

The network capabilities of the MSI MAG B550 TOMAHAWK are represented by several adapters with a total throughput of up to 2500 Mbps. There are many ports for connecting peripherals, including USB-C, DisplayPort and HDMI. Thanks to the Realtek HD Audio audio chip, high-quality sound reproduction is ensured.

Seller/manufacturer warranty36 months.
Typemotherboard
ModelMSI MAG B550 TOMAHAWK
SeriesMSI MAG
Colorblack
Release year2020
Form factorStandard-ATX
Height305 mm
Width244 mm
SocketAM4
AMD ChipsetAMD B550
Compatible AMD processor coresCezanne, Matisse, Regor, Vermeer
Supported memory typeDDR4
Supported memory form factorDIMM
Number of memory slots4
Number of memory channels2
Maximum memory128 GB
Maximum memory frequency (JEDEC / non-overclocked)3200 MHz
Overclocked RAM frequency3466 MHz, 3600 MHz, 3733 MHz, 3866 MHz, 4000 MHz, 4133 MHz, 4266 MHz, 4400 MHz, 4533 MHz, 4600 MHz, 4733 MHz, 4800 MHz, 4866 MHz, 5000 MHz, 5100 MHz
PCI Express Version4.0
PCIe x16 slots1 x PCIe 3.0 (in x4 mode), 1 x PCIe 4.0 (in x16 mode)
SLI/CrossFire supportCrossFire X
Number of cards in SLI / Crossfire2 pcs.
Number of PCI-E x1 slots2
NVMe supportyes
PCI Express drive version4.0
Number of M.2 connectors2
M.2 (M) slots, PCIe processor lines1 x 2242/2260/2280/22110 (SATA/PCIe 4.0 x4)
M.2 (M) slots, PCIe chipset lines1 x 2242/2260/2280 (PCIe 3.0 x4)
Number of SATA ports6
SATA RAID operating mode0, 1, 10
Other drive connectorsno
USB Type-A Ports1 x USB 3.2 Gen 2, 2 x USB 2.0, 2 x USB 3.2 Gen 1
USB Type-C ports1 x USB 3.2 Gen 2
Video outputs1 x DisplayPort
Number of network ports (RJ-45)2
Number of analog audio connectors6
Digital audio ports (S/PDIF)TOSLINK (S/PDIF optical)
SMA connectors (for Wi-Fi antenna)no
PS/2 portscombo
Internal USB Type-A connectors1 x USB 3.2 Gen 1 (19 pin), 2 x USB 2.0 (9 pin)
Internal USB Type-C connectors1 x USB 3.2 Gen 1
CPU cooling power connectors1 x 4 pin (cooler)
Case fan headers (3 pin)no
Connectors 5V-D-G (3 pin) for ARGB backlight2
Connectors 12V-G-R-B (4 pin) for RGB backlight2
M.2 (E) connector for wireless modulesno
RS-232 (COM) connectorno
LPT interfaceno
Sound design7.1
Sound adapter chipsetRealtek ALC1200
Network adapter speed2.5 Gbps
Network adapterRealtek RTL8111H, Realtek RTL8125B
Wi-Fi standardno
Bluetooth versionno
Wireless adapterno
Main power connector24 pin
CPU power connector1 x 8 pin
Number of power phases12
Passive cooling2 x M.2 slot, VRM zone, chipset
Active coolingno
Buttons on boardFlash BIOS button
Illumination of board elementsyes
Backlight Sync SoftwareMSI Mystic Light
Additional featuresTPM 2.0 support
Contents2 x SATA cable, software disk, documentation
Weight with box2.09 kg
Country of originChina
Case fan headers (4 pin)6
Smartphone appMSI App Player
Connectors for the liquefied liquid pump (4 pin)1
