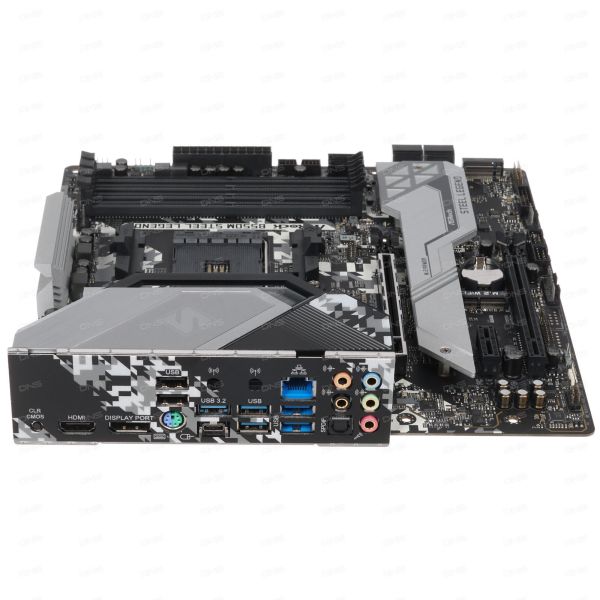

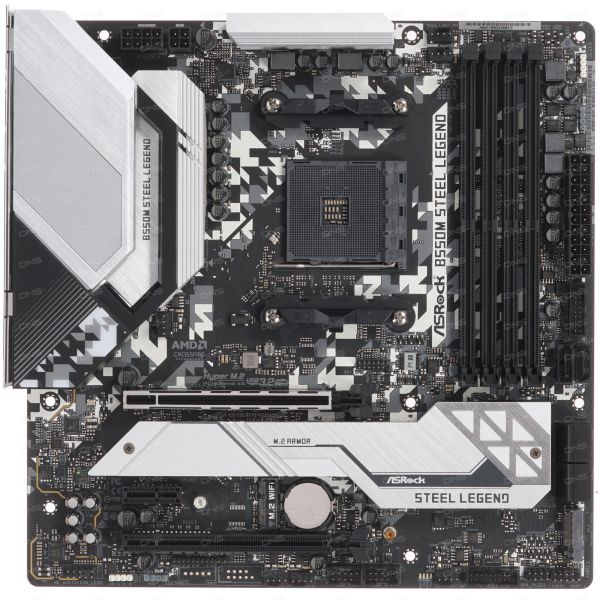

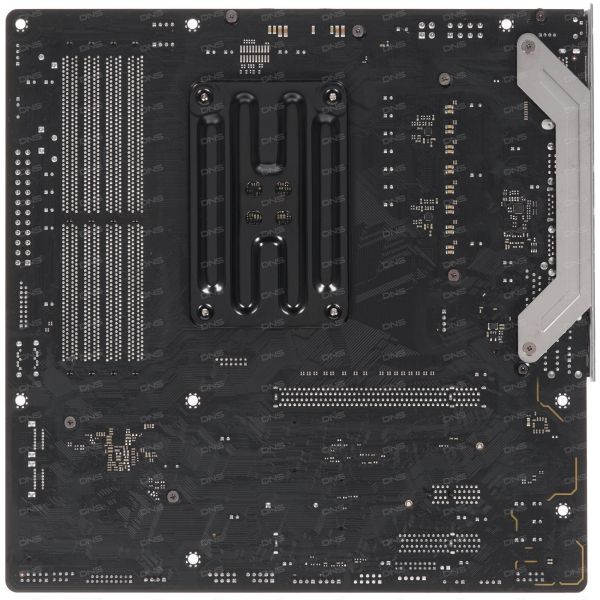

ASRock B550M Steel Legend motherboard

Product ID: 37

(2)

SKU Code:

ASRock B550M Steel Legend

Specifications:

Form factor: Micro-ATX
Socket: AM4
AMD Chipset: AMD B550
Supported memory type: DDR4
Number of power phases: 10
Country of origin: Vietnam
All Specifications

$184

Add To Favorites

Compare

The ASRock B550M Steel Legend motherboard combines an eye-catching design and will delight gamers with flexible options for connecting powerful components. It is made in the Micro-ATX form factor and is based on the AMD B550 chipset. CrossFire X support allows for the connection of two graphics adapters. This board is equipped with 4 bays for installing up to 128 GB of RAM, 2 PCI-E x16 expansion slots and 1 PCI-E x1 slot, 6 SATA 6 Gb/s ports and 2 M.2 connectors for storage devices.

ASRock B550M Steel Legend is equipped with a Realtek RTL8125BG network controller with a bandwidth of 2500 Mbps, a 7.1-channel audio codec, popular ports and connectors. Massive silver aluminum heatsinks are complemented by customizable RGB LED lighting elements. The 10-phase power subsystem and reliable components guarantee stable operation of the motherboard.

Seller/manufacturer warranty	36 months.
Type	motherboard
Model	ASRock B550M Steel Legend
Series	ASRock Steel Legend
Color	black
Release year	2020
Form factor	Micro-ATX
Height	244 mm
Width	244 mm
Socket	AM4
AMD Chipset	AMD B550
Compatible AMD processor cores	Cezanne, Matisse, Matisse 2, Picasso, Renoir, Vermeer
Supported memory type	DDR4
Supported memory form factor	DIMM
Number of memory slots	4
Number of memory channels	2
Maximum memory	128 GB
Maximum memory frequency (JEDEC / non-overclocked)	3200 MHz
Overclocked RAM frequency	3466 MHz, 3600 MHz, 3733 MHz, 3800 MHz, 3866 MHz, 4000 MHz, 4133 MHz, 4200 MHz, 4266 MHz, 4333 MHz, 4400 MHz, 4466 MHz, 4533 MHz, 4600 MHz, 4666 MHz, 4733 MHz
PCI Express Version	4.0
PCIe x16 slots	1 x PCIe 3.0 (in x4 mode), 1 x PCIe 4.0 (in x16 mode)
SLI/CrossFire support	CrossFire X
Number of cards in SLI / Crossfire	2 pcs.
Number of PCI-E x1 slots	1
NVMe support	yes
PCI Express drive version	4.0
Number of M.2 connectors	2
M.2 (M) slots, PCIe processor lines	1 x 2280 (PCIe 4.0 x4)
M.2 (M) slots, PCIe chipset lines	1 x 2280 (SATA/PCIe 3.0 x2)
Number of SATA ports	6
SATA RAID operating mode	0, 1, 10
Other drive connectors	no
USB Type-A Ports	1 x USB 3.2 Gen 2, 2 x USB 2.0, 4 x USB 3.2 Gen 1
USB Type-C ports	1 x USB 3.2 Gen 2
Video outputs	1 x DisplayPort
Number of network ports (RJ-45)	1
Number of analog audio connectors	5
Digital audio ports (S/PDIF)	TOSLINK (S/PDIF optical)
SMA connectors (for Wi-Fi antenna)	yes
PS/2 ports	combo
Internal USB Type-A connectors	2 x USB 2.0 (9 pin), 2 x USB 3.2 Gen 1 (19 pin)
Internal USB Type-C connectors	no
CPU cooling power connectors	1 x 4 pin (cooler), 1 x 4 pin (cooler/pump)
Combined connectors for fans and LSS pump (4 pin)	4
Case fan headers (3 pin)	no
Connectors 5V-D-G (3 pin) for ARGB backlight	2
Connectors 12V-G-R-B (4 pin) for RGB backlight	2
M.2 (E) connector for wireless modules	yes
RS-232 (COM) connector	no
LPT interface	no
Sound design	7.1
Sound adapter chipset	Realtek ALC1200
Network adapter speed	2.5 Gbps
Network adapter	Realtek RTL8125BG
Wi-Fi standard	no
Bluetooth version	no
Wireless adapter	no
Main power connector	24 pin
CPU power connector	8 pin + 4 pin
Number of power phases	10
Passive cooling	1 x M.2 slot, VRM zone, chipset
Active cooling	no
Buttons on board	Clear CMOS Button
Illumination of board elements	yes
Backlight Sync Software	ASRock Polychrome SYNC
Additional features	4 fan power connectors combined with pump power supply
Contents	2 x SATA cable, software disk, documentation, fasteners for M.2 connector
Weight with box	1.66 kg
Country of origin	Vietnam
Case fan headers (4 pin)	no
Smartphone app	no
Box length	31 cm
Box width	28.5 cm
Box height	7 cm
