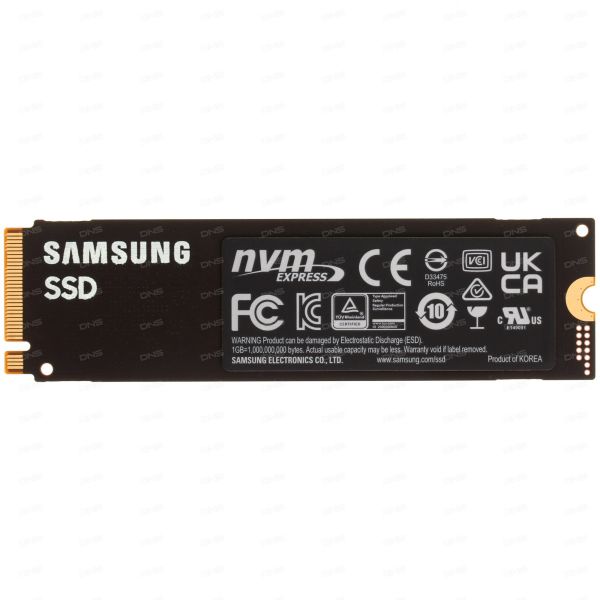

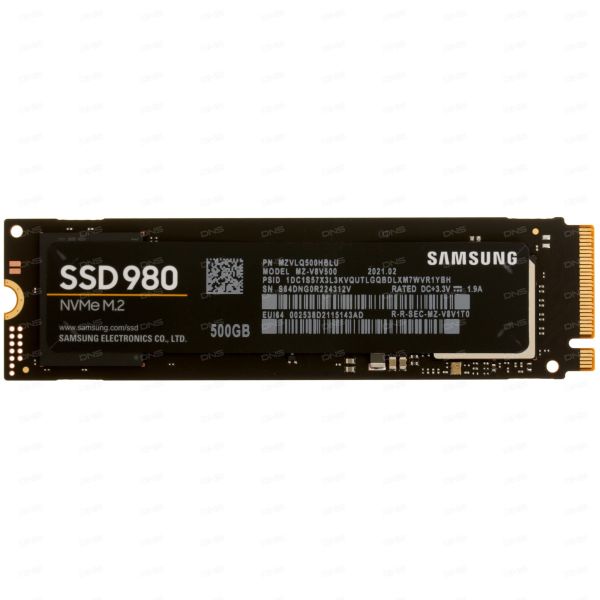

500 GB SSD M.2 drive Samsung 980 [MZ-V8V500BW]

Product ID: 151
(1)
SKU Code:
MZ-V8V500BW
Specifications:
  • Storage capacity: 500 GB
  • Form factor: 2280
  • M.2 socket key: M
  • Memory structure: 3D NAND
  • Maximum sequential read speed: 3100 MB/sec
  • Maximum sequential write speed: 2600 MB/sec
Samsung
$64
Add To Favorites
Compare

The 500 GB SSD M.2 drive Samsung 980 [MZ-V8V500BW] is a powerful solution that will ensure high speed for your computer in a variety of tasks. The model is based on NAND memory chips with support for NVMe technology, as well as a Samsung Pablo Controller microprocessor, which, coupled with the PCI-E 3.0 x4 connector used to connect to the motherboard, allows you to achieve write and read speeds of up to 2600 and 3100 MB/s, respectively. In addition, the disk is distinguished by its reliability - its working life reaches 300 TBW, and the mean time between failures reaches 1.5 million hours.

SSD M.2 drive Samsung 980 [MZ-V8V500BW] is not only a powerful, but also a compact solution. The case corresponds to the 2280 format, where 22.15 mm is the width of the module, and 80.15 mm is its length. The thickness of the bar is only 2.38 mm. Installation on the motherboard is carried out using an M type key.

Seller/manufacturer warranty60 months.
TypeSSD M.2 drive
ModelSamsung 980
Manufacturer codeMZ-V8V500BW
Storage capacity500 GB
Form factor2280
Physical interfacePCI-E 3.x x4
M.2 socket keyM
NVMeyes
Memory structure3D NAND
DRAM bufferno
Maximum sequential read speed3100 MB/sec
Maximum sequential write speed2600 MB/sec
Maximum Write Yield (TBW)300 TB
DWPD0.33
Radiator includedno
Length80.15 mm
Width22.15 mm
Thickness2.38 mm
Weight8 g
Country of originChina
ControllerSamsung Pablo Controller
Number of bits per cell3 bits MLC (TLC)
Read random blocks 4 KB (QD32)400,000 IOPS
Write random blocks 4 KB (QD32)470000 IOPS
Power consumption4.3 W
Hardware data encryptionyes
Features, additionallyAES 256-bit hardware encryption
