MSI MPG B650I EDGE WIFI motherboard

Product ID: 64
(2)
SKU Code:
MSI MPG B650I EDGE WIFI
Specifications:
  • Form factor: Mini-ITX
  • Socket: AM5
  • AMD Chipset: AMD B650
  • Supported memory type: DDR5
  • Number of power phases: 8+2+1
  • Country of origin: China
MSI
$308
Add To Favorites
Compare

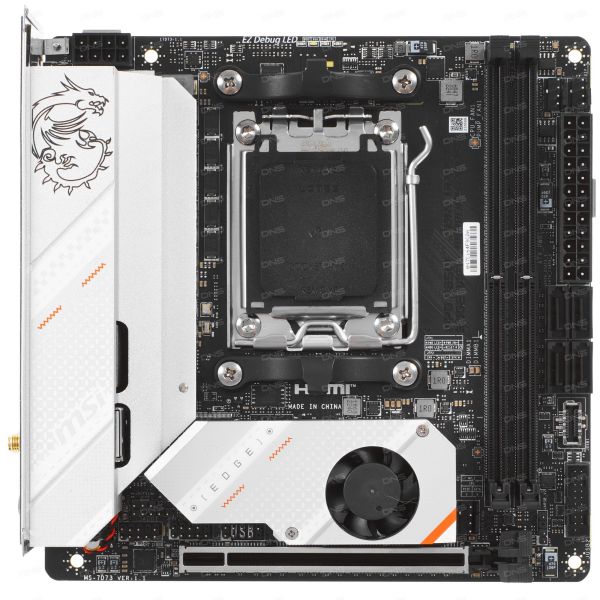

The MSI MPG B650I EDGE WIFI motherboard is an original style, compactness and high-level technology. It is created for gamers and modders. Externally, the model attracts attention with large silver cooling radiators and RGB lighting with the possibility of personalization. Large heatsink with small fan and direct contact heat pipe ensure stable heat dissipation.

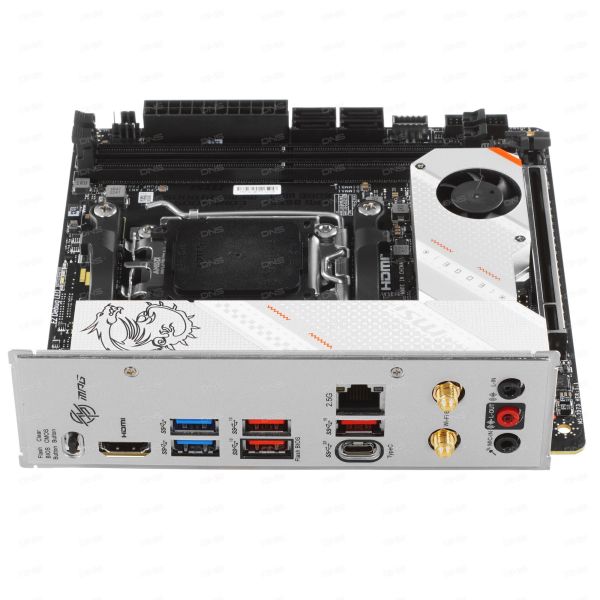

MSI MPG B650I EDGE Mini-ITX form factor received 2 slots for installing up to 96 GB of DDR5 RAM, a PCI-E x16 expansion slot for a graphics adapter, 2 M.2 connectors and 4 SATA slots for drives. The board is equipped with a network adapter with a speed of 2.5 Gbit/s and an integrated module with Wi-Fi/Bluetooth support. There are many connectors on the side: USB Type-A and Type-C, HDMI, LAN, audio.

Seller/manufacturer warranty36 months.
Typemotherboard
ModelMSI MPG B650I EDGE WIFI
SeriesMSI MPG
Release year2022
Form factorMini-ITX
Height170 mm
Width170 mm
SocketAM5
AMD ChipsetAMD B650
Compatible AMD processor coresRaphael
Supported memory typeDDR5
Supported memory form factorDIMM
Number of memory slots2
Number of memory channels2
Maximum memory96 GB
Maximum memory frequency (JEDEC / non-overclocked)4800 MHz
Overclocked RAM frequency5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 6800 MHz, 7000 MHz, 7200 MHz
PCI Express Version4.0
PCIe x16 slots1 x PCIe 4.0 (in x16 mode)
SLI/CrossFire supportno
Number of cards in SLI / Crossfireno pcs.
Number of PCI-E x1 slotsno
NVMe supportyes
PCI Express drive version4.0
Number of M.2 connectors2
M.2 (M) slots, PCIe processor lines1 x 2260/2280 (PCIe 4.0 x4)
M.2 (M) slots, PCIe chipset lines1 x 2260/2280 (PCIe 4.0 x4)
Number of SATA ports4
SATA RAID operating mode0, 1, 10
Other drive connectorsno
USB Type-A Ports2 x USB 3.2 Gen 1, 3 x USB 3.2 Gen 2
USB Type-C ports1 x USB 3.2 Gen 2x2
Video outputs1 x HDMI
Number of network ports (RJ-45)1
Number of analog audio connectors3
Digital audio ports (S/PDIF)no
SMA connectors (for Wi-Fi antenna)yes
PS/2 portsno
Internal USB Type-A connectors1 x USB 2.0 (9 pin), 1 x USB 3.2 Gen 1 (19 pin)
Internal USB Type-C connectors1 x USB 3.2 Gen 2
CPU cooling power connectors1 x 4 pin (cooler)
Case fan headers (3 pin)no
Connectors 5V-D-G (3 pin) for ARGB backlight1
Connectors 12V-G-R-B (4 pin) for RGB backlightno
M.2 (E) connector for wireless modulesyes
RS-232 (COM) connectorno
LPT interfaceno
Sound design7.1
Sound adapter chipsetRealtek ALC4080
Network adapter speed2.5 Gbps
Network adapterRealtek RTL8125BG
Wi-Fi standard6E (802.11ax)
Bluetooth version5.2
Main power connector24 pin
CPU power connector1 x 8 pin
Number of power phases8+2+1
Passive coolingVRM Zone
Active coolingfan on M.2 slot
Buttons on boardBIOS FlashBack button, Clear CMOS button
Illumination of board elementsno
Backlight Sync SoftwareMSI Mystic Light
Additional featuressupport for AMD EXPO, some of the connectors are on the back of the motherboard
Contents2 x SATA cable, Wi-Fi antenna, documentation
Weight with box1.08 kg
Country of originChina
Case fan headers (4 pin)1
Box length22.5 cm
Box width19 cm
Box height8 cm
Number of PCB layers10
Connectors for the liquefied liquid pump (4 pin)1
