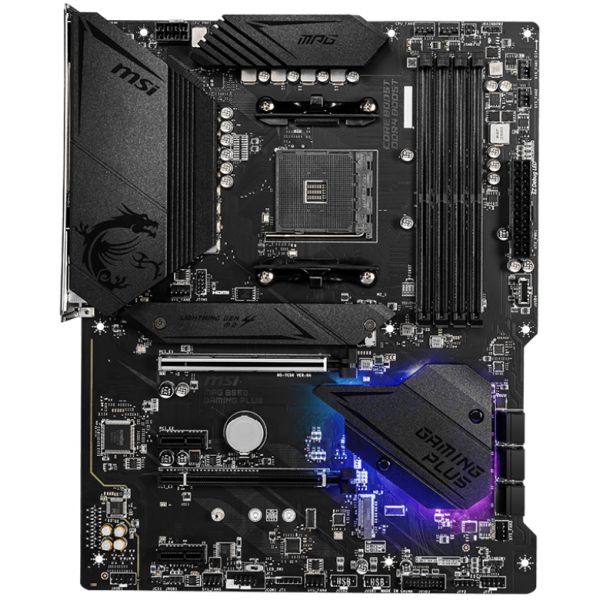

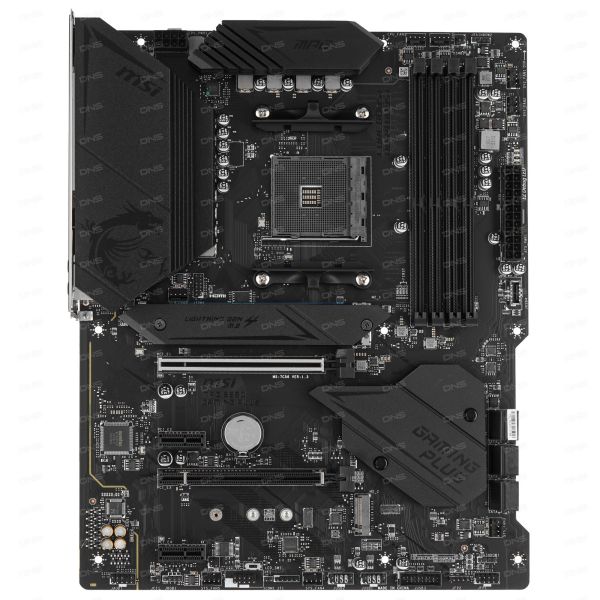

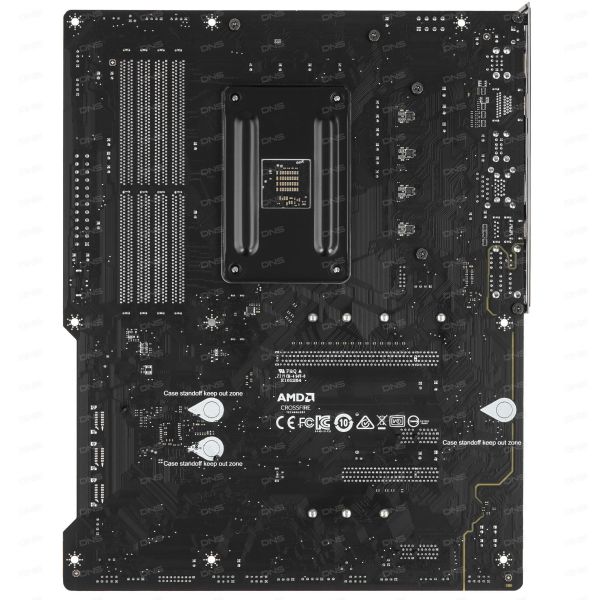

MSI MPG B550 GAMING PLUS motherboard

Product ID: 63
(1)
SKU Code:
MSI MPG B550 GAMING PLUS
Specifications:
  • Form factor: Standard-ATX
  • Socket: AM4
  • AMD Chipset: AMD B550
  • Supported memory type: DDR4
  • Number of power phases: 10+2+1
  • Country of origin: China
MSI
$184
Add To Favorites
Compare

The MSI MPG B550 GAMING PLUS motherboard is an excellent choice for gaming enthusiasts who prefer to use AMD processors. The device is compatible with processors that use the AM4 socket. The board, which can accommodate up to 128 GB of memory, is suitable not only for entertainment, but also for professional tasks. In this regard, you will probably find NVMe support useful, thanks to which you can use high-speed SSDs.

The MSI MPG B550 GAMING PLUS board supports CrossFire X technology. You can use 2 video cards at the same time. There are 4 expansion slots in total: the device has a pair of PCI-E x1 slots, which provide the ability to mount controllers and expansion cards for various purposes, including a Wi-Fi adapter and a sound card. The standard sound of the board corresponds to the 7.1 format. The speed of the built-in network adapter is 1 Gbit/s. The form factor of the board is Standard-ATX. The device has standard (305x244 mm) dimensions.

Seller/manufacturer warranty36 months.
Typemotherboard
ModelMSI MPG B550 GAMING PLUS
SeriesMSI MPG
Colorblack
Release year2020
Form factorStandard-ATX
Height305 mm
Width244 mm
SocketAM4
AMD ChipsetAMD B550
Compatible AMD processor coresCezanne, Matisse, Regor, Vermeer
Supported memory typeDDR4
Supported memory form factorDIMM
Number of memory slots4
Number of memory channels2
Maximum memory128 GB
Maximum memory frequency (JEDEC / non-overclocked)3200 MHz
Overclocked RAM frequency3466 MHz, 3600 MHz, 3733 MHz, 3866 MHz, 4000 MHz, 4133 MHz, 4266 MHz, 4400 MHz
PCI Express Version4.0
PCIe x16 slots1 x PCIe 3.0 (in x4 mode), 1 x PCIe 4.0 (in x16 mode)
SLI/CrossFire supportCrossFire X
Number of cards in SLI / Crossfire2 pcs.
Number of PCI-E x1 slots2
NVMe supportyes
PCI Express drive version4.0
Number of M.2 connectors2
M.2 (M) slots, PCIe processor lines1 x 2242/2260/2280/22110 (SATA/PCIe 4.0 x4)
M.2 (M) slots, PCIe chipset lines1 x 2242/2260/2280 (PCIe 3.0 x4)
Number of SATA ports6
SATA RAID operating mode0, 1, 10
Other drive connectorsno
USB Type-A Ports1 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0
USB Type-C ports1 x USB 3.2 Gen 2
Video outputs1 x DisplayPort
Number of network ports (RJ-45)1
Number of analog audio connectors5
Digital audio ports (S/PDIF)TOSLINK (S/PDIF optical)
SMA connectors (for Wi-Fi antenna)no
PS/2 portscombo
Internal USB Type-A connectors1 x USB 3.2 Gen 1 (19 pin), 2 x USB 2.0 (9 pin)
Internal USB Type-C connectors1 x USB 3.2 Gen 1
CPU cooling power connectors1 x 4 pin (cooler)
Case fan headers (3 pin)no
Connectors 5V-D-G (3 pin) for ARGB backlight2
Connectors 12V-G-R-B (4 pin) for RGB backlight1
M.2 (E) connector for wireless modulesno
RS-232 (COM) connectorno
LPT interfaceno
Sound design7.1
Sound adapter chipsetRealtek ALC892/ALC897
Network adapter speed1 Gbps
Network adapterRealtek RTL8111H
Wi-Fi standardno
Bluetooth versionno
Wireless adapterno
Main power connector24 pin
CPU power connector1 x 8 pin
Number of power phases10+2+1
Passive cooling1 x M.2 slot, VRM zone, chipset
Active coolingno
Buttons on boardFlash BIOS button
Illumination of board elementsyes
Backlight Sync SoftwareMSI Mystic Light
Additional featuresTPM 2.0 support
Contents2 x SATA cable, software disk, documentation
Weight with box1.9 kg
Country of originChina
Case fan headers (4 pin)6
Smartphone appMSI App Player
Box length34 cm
Box width27 cm
Box height8.7 cm
Connectors for the liquefied liquid pump (4 pin)1
