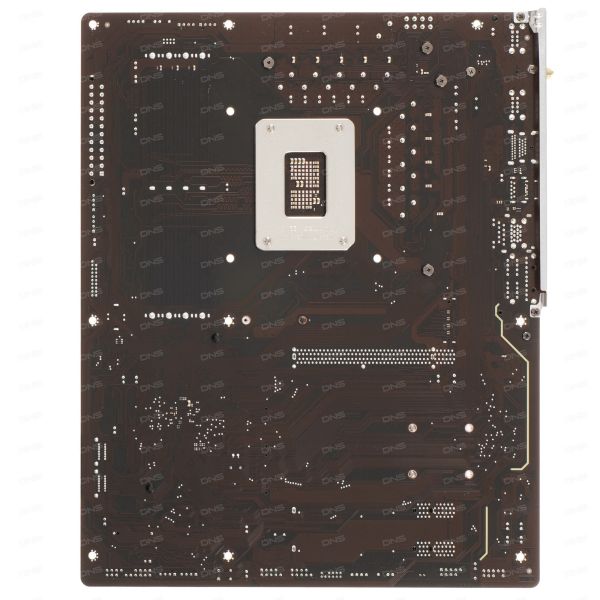

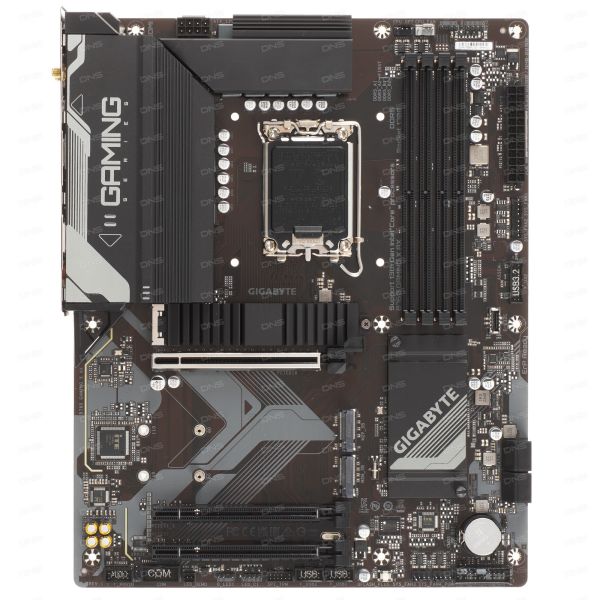

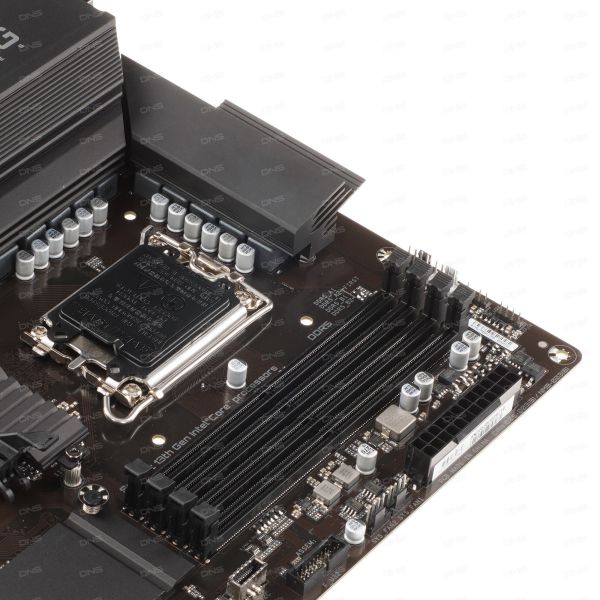

GIGABYTE B760 GAMING X AX motherboard

Product ID: 53

SKU Code:

GIGABYTE B760 GAMING X AX

Specifications:

Form factor: Standard-ATX
Socket: LGA 1700
Supported memory type: DDR5
Number of power phases: 8+1+1
Country of origin: Taiwan (China)
Intel Chipset: Intel B760
All Specifications

$234

Add To Favorites

Compare

The GIGABYTE B760 GAMING X AX motherboard is a solid foundation for building a multimedia and gaming PC. It is created in accordance with the ATX form factor based on the Intel B760 chipset and supports the installation of 12/13/14 generation Intel Core processors. To connect the necessary components, there are 4 DIMM DDR5 slots, three PCI-E x16 expansion slots, 4 SATA connectors and 3 M.2 connectors.

GIGABYTE B760 GAMING X AX is equipped with a 2.5 Gbps network adapter and a wireless communication module. On the side panel there are USB ports, HDMI and DisplayPort connectors, and 3.5 mm audio. A reliable element base guarantees stability and long service life of the motherboard. For ease of monitoring there is a Q-Flash Plus button.

Seller/manufacturer warranty	36 months.
Type	motherboard
Model	GIGABYTE B760 GAMING X AX
Series	GIGABYTE GAMING
Color	black
Release year	2022
Form factor	Standard-ATX
Height	305 mm
Width	244 mm
Socket	LGA 1700
Supported memory type	DDR5
Supported memory form factor	DIMM
Number of memory slots	4
Number of memory channels	2
Maximum memory	192 GB
Maximum memory frequency (JEDEC / non-overclocked)	4800 MHz
Overclocked RAM frequency	5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 6800 MHz, 7000 MHz, 7200 MHz, 7400 MHz, 7600 MHz
PCI Express Version	4.0
PCIe x16 slots	1 x PCIe 4.0 (in x16 mode), 2 x PCIe 3.0 (in x1 mode)
SLI/CrossFire support	no
Number of cards in SLI / Crossfire	no pcs.
Number of PCI-E x1 slots	no
NVMe support	yes
PCI Express drive version	4.0
Number of M.2 connectors	3
M.2 (M) slots, PCIe processor lines	1 x 2280/22110 (PCIe 4.0 x4)
M.2 (M) slots, PCIe chipset lines	2 x 2280/22110 (PCIe 4.0 x4)
Number of SATA ports	4
SATA RAID operating mode	0, 1, 5, 10
Other drive connectors	no
USB Type-A Ports	1 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2, 5 x USB 2.0
USB Type-C ports	1 x USB 3.2 Gen 1
Video outputs	1 x DisplayPort
Number of network ports (RJ-45)	1
Number of analog audio connectors	6
Digital audio ports (S/PDIF)	no
SMA connectors (for Wi-Fi antenna)	yes
PS/2 ports	no
Internal USB Type-A connectors	1 x USB 3.2 Gen 1 (19 pin), 2 x USB 2.0 (9 pin)
Internal USB Type-C connectors	1 x USB 3.2 Gen 2
CPU cooling power connectors	1 x 4 pin (cooler), 1 x 4 pin (cooler/pump)
Combined connectors for fans and LSS pump (4 pin)	1
Case fan headers (3 pin)	no
Connectors 5V-D-G (3 pin) for ARGB backlight	2
Connectors 12V-G-R-B (4 pin) for RGB backlight	2
M.2 (E) connector for wireless modules	yes
RS-232 (COM) connector	yes
LPT interface	no
Sound design	7.1
Network adapter speed	2.5 Gbps
Network adapter	Realtek RTL8125
Wi-Fi standard	6E (802.11ax)
Bluetooth version	5.2
Wireless adapter	AMD RZ608
Main power connector	24 pin
CPU power connector	1 x 8 pin
Number of power phases	8+1+1
Passive cooling	1 x M.2 slot, VRM zone, chipset
Active cooling	no
Buttons on board	Q-Flash Plus button
Illumination of board elements	no
Backlight Sync Software	GIGABYTE RGB Fusion
Additional features	Intel XMP support
Contents	2 x SATA cable, Wi-Fi antenna, documentation
Weight with box	1.67 kg
Country of origin	Taiwan (China)
Case fan headers (4 pin)	3
Box length	34.5 cm
Box width	27.3 cm
Box height	8.4 cm
Intel Chipset	Intel B760
Compatible Intel processor cores	Alder Lake, Raptor Lake, Raptor Lake Refresh
