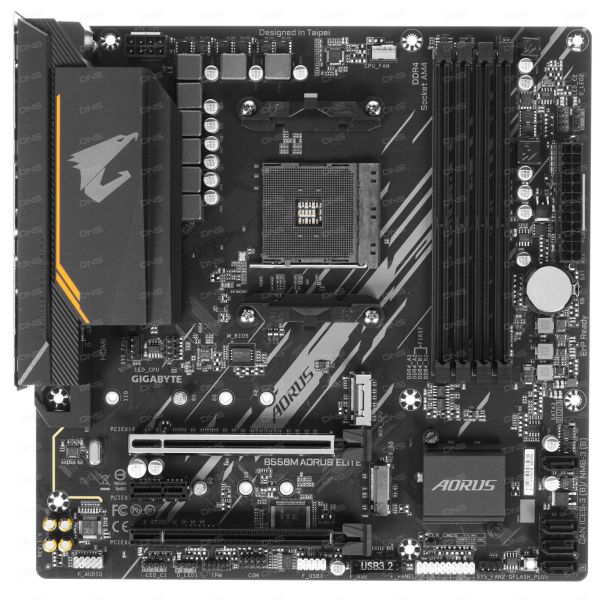

GIGABYTE B550M AORUS ELITE motherboard

Product ID: 49

(1)

SKU Code:

GIGABYTE B550M AORUS ELITE

Specifications:

Form factor: Micro-ATX
Socket: AM4
AMD Chipset: AMD B550
Supported memory type: DDR4
Number of power phases: 5+3
Country of origin: China
All Specifications

$162

Add To Favorites

Compare

GIGABYTE B550M AORUS ELITE motherboard is designed for gaming PC building with powerful features and reliable components. It is made in a compact Micro-ATX form factor and is built on the AMD B550 chipset, compatible with AMD processors. Connectivity options include 4 DIMM DDR4 slots, 2 PCI-E x16 expansion slots and 1 PCI-E x1 slot, 4 SATA 6Gb/s ports and 2 M.2 connectors.

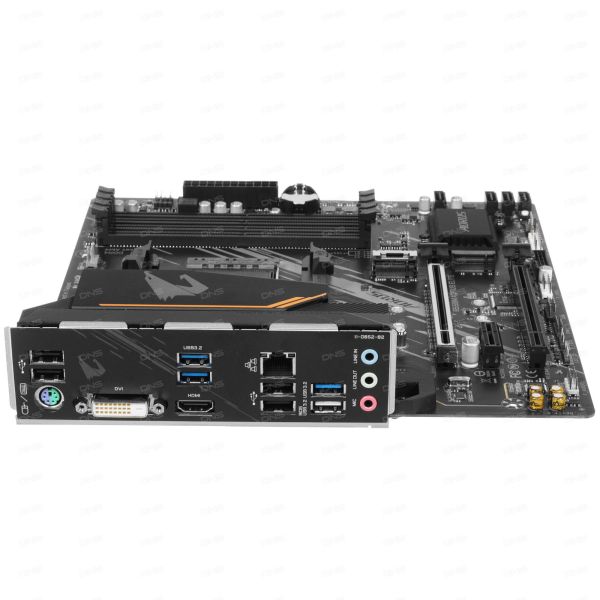

The I/O panel contains ports and connectors for connecting various external equipment. Access to the Internet is provided via a network adapter with a bandwidth of 1000 Mbit/s. GIGABYTE B550M AORUS ELITE features massive cooling heatsinks and highly customizable RGB Fusion lighting.

Seller/manufacturer warranty	36 months.
Type	motherboard
Model	GIGABYTE B550M AORUS ELITE
Series	GIGABYTE AORUS
Color	black
Release year	2020
Form factor	Micro-ATX
Height	244 mm
Width	244 mm
Socket	AM4
AMD Chipset	AMD B550
Compatible AMD processor cores	Cezanne, Matisse, Picasso, Renoir, Vermeer
Supported memory type	DDR4
Supported memory form factor	DIMM
Number of memory slots	4
Number of memory channels	2
Maximum memory	128 GB
Maximum memory frequency (JEDEC / non-overclocked)	3200 MHz
Overclocked RAM frequency	3400 MHz, 3466 MHz, 3600 MHz, 3733 MHz, 3866 MHz, 4000 MHz, 4133 MHz, 4266 MHz, 4400 MHz, 4600 MHz, 4733 MHz
PCI Express Version	4.0
PCIe x16 slots	1 x PCIe 3.0 (in x4 mode), 1 x PCIe 4.0 (in x16 mode)
SLI/CrossFire support	no
Number of cards in SLI / Crossfire	no pcs.
Number of PCI-E x1 slots	1
NVMe support	yes
PCI Express drive version	4.0
Number of M.2 connectors	2
M.2 (M) slots, PCIe processor lines	1 x 2242/2260/2280/22110 (SATA/PCIe 4.0 x4)
M.2 (M) slots, PCIe chipset lines	1 x 2242/2260/2280 (SATA/PCIe 3.0 x2)
Number of SATA ports	4
SATA RAID operating mode	0, 1, 10
Other drive connectors	no
USB Type-A Ports	4 x USB 2.0, 4 x USB 3.2 Gen 1
USB Type-C ports	no
Video outputs	1 x DVI-D
Number of network ports (RJ-45)	1
Number of analog audio connectors	3
Digital audio ports (S/PDIF)	no
SMA connectors (for Wi-Fi antenna)	no
PS/2 ports	combo
Internal USB Type-A connectors	1 x USB 2.0 (9 pin), 1 x USB 3.2 Gen 1 (19 pin)
Internal USB Type-C connectors	no
CPU cooling power connectors	1 x 4 pin (cooler)
Case fan headers (3 pin)	no
Connectors 5V-D-G (3 pin) for ARGB backlight	2
Connectors 12V-G-R-B (4 pin) for RGB backlight	2
M.2 (E) connector for wireless modules	no
RS-232 (COM) connector	yes
LPT interface	no
Sound design	7.1
Sound adapter chipset	Realtek ALC887
Network adapter speed	1 Gbps
Network adapter	Realtek RTL8118AS
Wi-Fi standard	no
Bluetooth version	no
Wireless adapter	no
Main power connector	24 pin
CPU power connector	1 x 8 pin
Number of power phases	5+3
Passive cooling	VRM zone, chipset
Active cooling	no
Buttons on board	Q-Flash Plus button
Illumination of board elements	no
Backlight Sync Software	GIGABYTE RGB Fusion
Additional features	TPM 2.0 support
Contents	CD with software, documentation
Weight with box	1.14 kg
Country of origin	China
Case fan headers (4 pin)	2
Smartphone app	GIGABYTE RGB Fusion
Box length	27 cm
Box width	27 cm
Box height	7 cm
