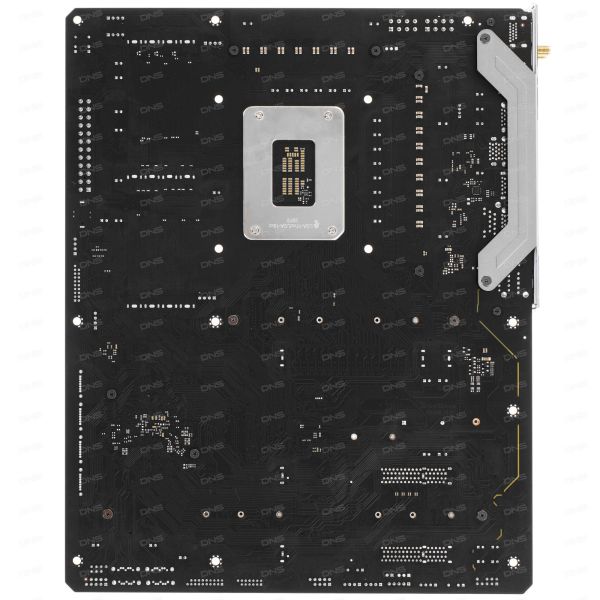

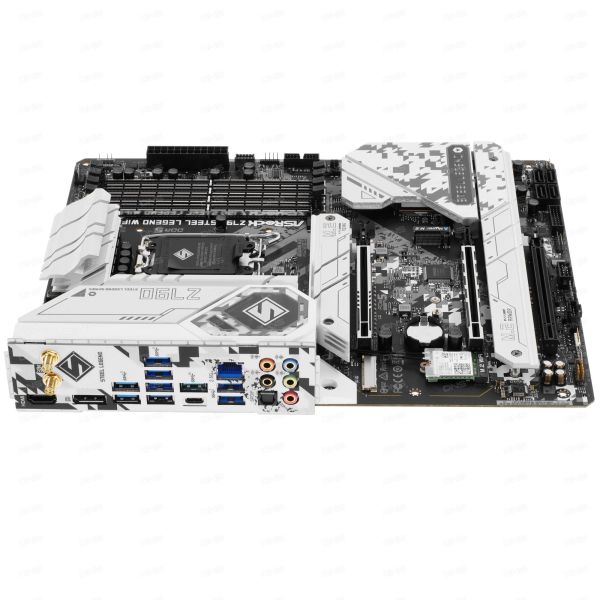

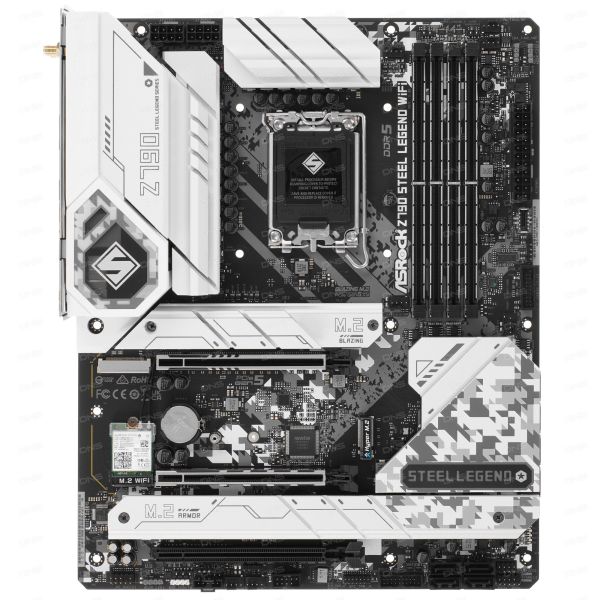

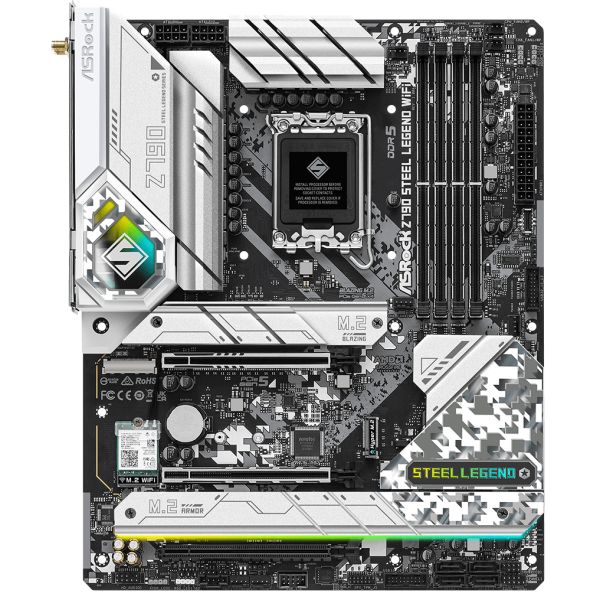

ASRock Z790 Steel Legend WiFi Motherboard

Product ID: 40

SKU Code:

ASRock Z790 Steel Legend WiFi

Specifications:

Form factor: Standard-ATX
Socket: LGA 1700
Supported memory type: DDR5
Number of power phases: 16+1+1
Country of origin: Vietnam
Intel Chipset: Intel Z790
All Specifications

$382

Add To Favorites

Compare

The ASRock Z790 Steel Legend WiFi motherboard is the epitome of original style, functionality and technology. It is designed for demanding gamers. The board is made in full-size Standard-ATX format. To connect high-performance components, there are 4 slots for installing up to 192 GB of DDR5 RAM, 3 PCI-E x16 expansion slots for a graphics adapter, 5 M.2 connectors and 8 SATA slots for high-speed storage devices.

ASRock Z790 Steel Legend is equipped with a 10 Gbps network adapter and an integrated module with Wi-Fi/Bluetooth support. The board houses massive cooling radiators for stable heat dissipation. Programmable RGB lighting provides extensive programmability.

Seller/manufacturer warranty	36 months.
Type	motherboard
Model	ASRock Z790 Steel Legend WiFi
Series	ASRock Steel Legend
Color	black
Release year	2022
Form factor	Standard-ATX
Height	305 mm
Width	244 mm
Socket	LGA 1700
Supported memory type	DDR5
Supported memory form factor	DIMM
Number of memory slots	4
Number of memory channels	2
Maximum memory	192 GB
Maximum memory frequency (JEDEC / non-overclocked)	4800 MHz
Overclocked RAM frequency	5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 6800 MHz, 7000 MHz, 7200 MHz
PCI Express Version	5.0
PCIe x16 slots	1 x PCIe 3.0 (in x2 mode), 1 x PCIe 4.0 (in x4 mode), 1 x PCIe 5.0 (in x16 mode)
SLI/CrossFire support	CrossFire X
Number of cards in SLI / Crossfire	2 pcs.
Number of PCI-E x1 slots	no
NVMe support	yes
PCI Express drive version	5.0
Number of M.2 connectors	5
M.2 (M) slots, PCIe processor lines	1 x 2260/2280 (PCIe 4.0 x4), 1 x 2260/2280 (PCIe 5.0 x4)
M.2 (M) slots, PCIe chipset lines	1 x 2260/2280 (PCIe 4.0 x4), 2 x 2242/2260/2280 (PCIe 4.0 x4)
Number of SATA ports	8
SATA RAID operating mode	0, 1, 5, 10
Other drive connectors	no
USB Type-A Ports	1 x USB 3.2 Gen 2, 8 x USB 3.2 Gen 1
USB Type-C ports	1 x USB 3.2 Gen 2
Video outputs	1 x DisplayPort
Number of network ports (RJ-45)	1
Number of analog audio connectors	5
Digital audio ports (S/PDIF)	TOSLINK (S/PDIF optical)
SMA connectors (for Wi-Fi antenna)	yes
PS/2 ports	no
Internal USB Type-A connectors	2 x USB 2.0 (9 pin), 2 x USB 3.2 Gen 1 (19 pin)
Internal USB Type-C connectors	1 x USB 3.2 Gen 2x2
CPU cooling power connectors	1 x 4 pin (cooler), 1 x 4 pin (cooler/pump)
Combined connectors for fans and LSS pump (4 pin)	5
Case fan headers (3 pin)	no
Connectors 5V-D-G (3 pin) for ARGB backlight	3
Connectors 12V-G-R-B (4 pin) for RGB backlight	1
M.2 (E) connector for wireless modules	yes
RS-232 (COM) connector	no
LPT interface	no
Sound design	7.1
Sound adapter chipset	Realtek ALC897
Network adapter speed	2.5 Gbps
Network adapter	Realtek RTL8125BG
Wi-Fi standard	6E (802.11ax)
Bluetooth version	5.3
Main power connector	24 pin
CPU power connector	2 x 8 pin
Number of power phases	16+1+1
Passive cooling	3 x M.2 slot, VRM zone, chipset
Active cooling	no
Buttons on board	no
Illumination of board elements	yes
Backlight Sync Software	ASRock Polychrome SYNC
Additional features	1 connector for connecting expansion cards with Thunderbolt support, 5 fan power connectors combined with pump power, Intel XMP support
Contents	2 x SATA cable, Wi-Fi antenna, video card holder, software disk, documentation, fasteners for M.2 connector
Weight with box	2.34 kg
Country of origin	Vietnam
Case fan headers (4 pin)	no
Box length	38 cm
Box width	32 cm
Box height	10 cm
Intel Chipset	Intel Z790
Compatible Intel processor cores	Alder Lake, Raptor Lake, Raptor Lake Refresh
Number of PCB layers	6
