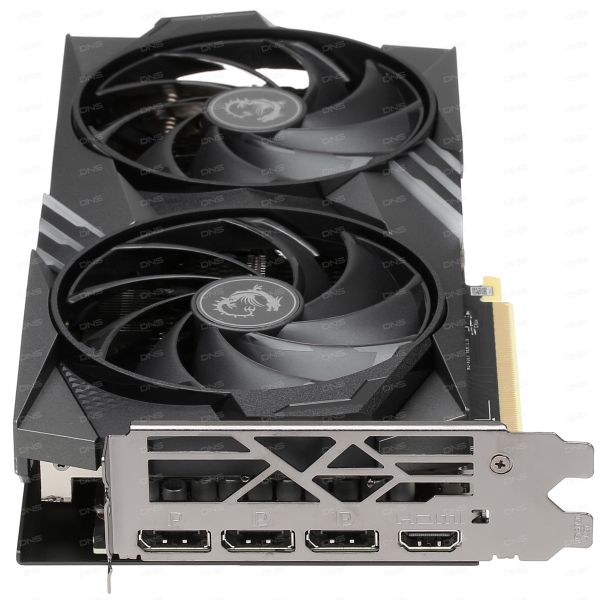

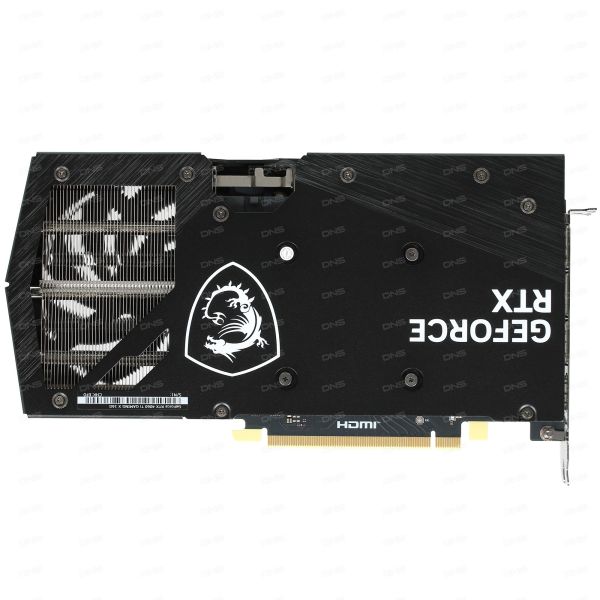

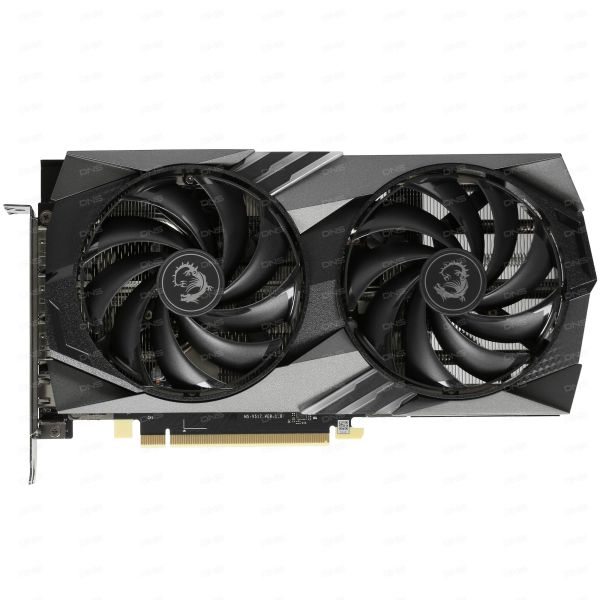

MSI GeForce RTX 4060 Ti GAMING X graphics card [GeForce RTX 4060 Ti GAMING X 16G]

Product ID: 80
SKU Code:
GeForce RTX 4060 Ti GAMING X 16G
Specifications:
  • GPU: GeForce RTX 4060 Ti
  • Microarchitecture: NVIDIA Ada Lovelace
  • Video memory capacity: 16 GB
  • Memory type: GDDR6
MSI
$693
Add To Favorites
Compare

The MSI GeForce RTX 4060 Ti GAMING X [GeForce RTX 4060 Ti GAMING X 16G] graphics card with Ada Lovelace architecture provides performance in games, demanding programs, and streaming. AI technologies DLSS 3 and Reflex ensure clear details and smooth dynamic scenes. The Studio platform allows you to work productively in graphics processing programs.

The front shroud features stripes with customizable RGB LED lighting. The TWIN FROZR 9 cooling system is capable of maintaining high processing power under intensive workloads. TORX 5.0 fans generate intense air flow at low rotation speed. The solid nickel-plated copper plate on the base and heat pipes ensure stable heat dissipation. Zero Frozr technology stops fans completely under low load conditions. To overclock the MSI GeForce RTX 4060 Ti GAMING X video card, the MSI Afterburner utility is provided.

Seller/manufacturer warranty36 months.
Typevideo card
ModelMSI GeForce RTX 4060 Ti GAMING X
Manufacturer codeGeForce RTX 4060 Ti GAMING X 16G
Colorblack
Designed for mining (cryptocurrency mining)no
LHRno
GPUGeForce RTX 4060 Ti
MicroarchitectureNVIDIA Ada Lovelace
Process technology5 nm
Standard video chip operating frequency2310 MHz
Turbo frequency2655 MHz
Number of all-purpose processors (ALU)4352
Number of texture units136
Number of rasterization units48
Ray tracing supportyes
Hardware-accelerated ray tracing (RT cores)34
Tensor cores136
Video memory capacity16 GB
Memory typeGDDR6
Memory bus width128 bits
Maximum memory bandwidth288 GB/sec
Effective memory frequency18000 MHz
Type and number of video connectors3 x DisplayPort, HDMI
HDMI Version2.1a
DisplayPort Version1.4a
Number of monitors connected simultaneously4
Maximum resolution7680x4320 (8K Ultra HD)
Connection interfacePCI-E 4.0
Connector form factorPCIe x16
Number of PCI Express lanes8
Additional power connectors8 pin
Recommended power supply550 W
Cooling typeactive air
Type and number of installed fans2 axial
Liquid cooling radiatorno
Illumination of video card elementsyes
RGB SyncMSI Mystic Light
LCD displayno
BIOS switchno
Contentsdocumentation
Low Profile CardNo
Number of occupied expansion slots2
Video card length247 mm
Graphics card width130 mm
Video card thickness42 mm
Weight672 g
Country of originChina
Power consumption165 W
