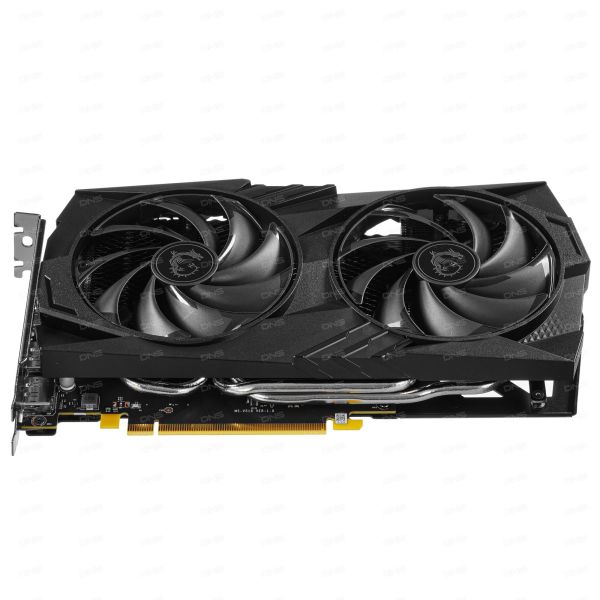

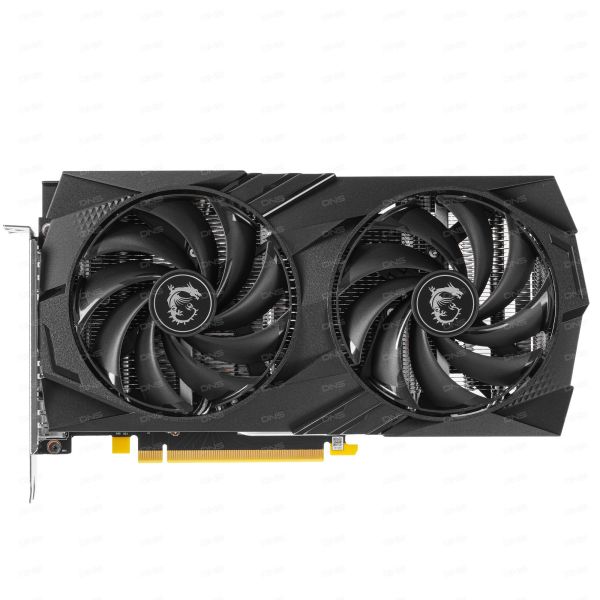

MSI GeForce RTX 4060 GAMING X graphics card [GeForce RTX 4060 GAMING X 8G]

Product ID: 79
SKU Code:
GeForce RTX 4060 GAMING X 8G
Specifications:
  • GPU: GeForce RTX 4060
  • Microarchitecture: NVIDIA Ada Lovelace
  • Video memory capacity: 8 GB
  • Memory type: GDDR6
MSI
$490
Add To Favorites
Compare

The MSI GeForce RTX 4060 GAMING X graphics card is designed for fans of computer games. The GeForce RTX 40 series GPU is powered by Ada Lovelace architecture and is fast and energy efficient. Ray tracing technology provides shadow depth and increased image realism, as well as accelerated gamer reaction to what is happening in the virtual world. MSI Center proprietary software helps monitor and configure video card operating parameters.

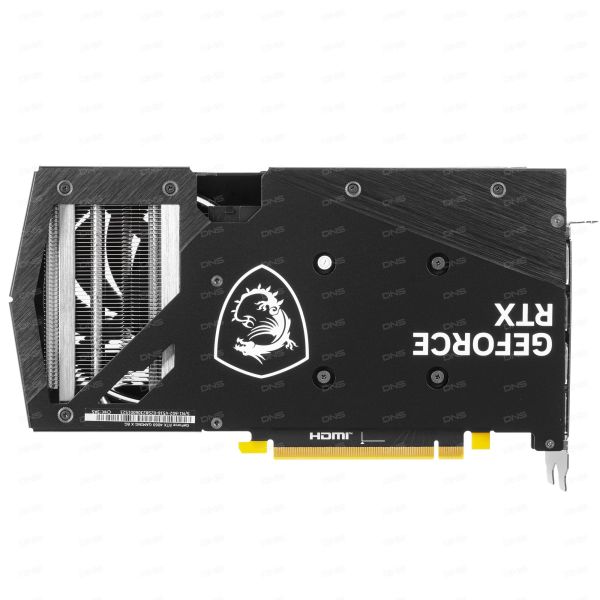

The TWIN FROZR cooling system with optimized TORX FAN design is capable of maintaining high performance under any load. The nickel-plated copper plate removes heat from the CPU and transfers it to the cooling pipes. Airflow Control technology distributes airflow evenly. There is a metal plate on the rear side, which increases resistance to damage and deformation. To connect to the signal source, there are 3 DisplayPort and 1 HDMI connectors.

Seller/manufacturer warranty36 months.
Typevideo card
ModelMSI GeForce RTX 4060 GAMING X
Manufacturer codeGeForce RTX 4060 GAMING X 8G
Colorblack
Designed for mining (cryptocurrency mining)no
LHRno
GPUGeForce RTX 4060
MicroarchitectureNVIDIA Ada Lovelace
Process technology5 nm
Standard video chip operating frequency1830 MHz
Turbo frequency2610 MHz
Number of all-purpose processors (ALU)3072
Number of texture units96
Number of rasterization units48
Ray tracing supportyes
Hardware-accelerated ray tracing (RT cores)24
Tensor cores96
Video memory capacity8 GB
Memory typeGDDR6
Memory bus width128 bits
Maximum memory bandwidth272 GB/sec
Effective memory frequency17000 MHz
Type and number of video connectors3 x DisplayPort, HDMI
HDMI Version2.1a
DisplayPort Version1.4a
Number of monitors connected simultaneously4
Maximum resolution7680x4320 (8K Ultra HD)
Connection interfacePCI-E 4.0
Connector form factorPCIe x16
Number of PCI Express lanes8
Additional power connectors8 pin
Recommended power supply550 W
Cooling typeactive air
Type and number of installed fans2 axial
Liquid cooling radiatorno
Illumination of video card elementsyes
RGB Syncno
LCD displayno
BIOS switchno
Features, additionallyTORX Fan 5.0 fans
Contentsdocumentation
Low Profile CardNo
Number of occupied expansion slots2
Video card length247 mm
Graphics card width130 mm
Video card thickness41 mm
Weight587 g
Country of originChina
Power consumption115 W
