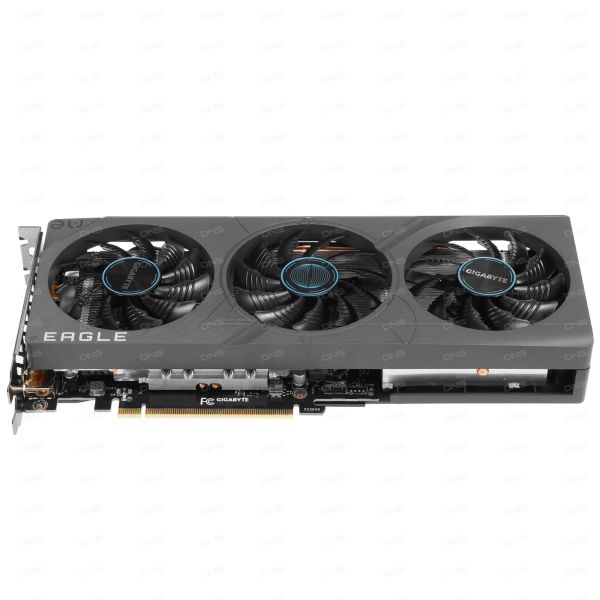

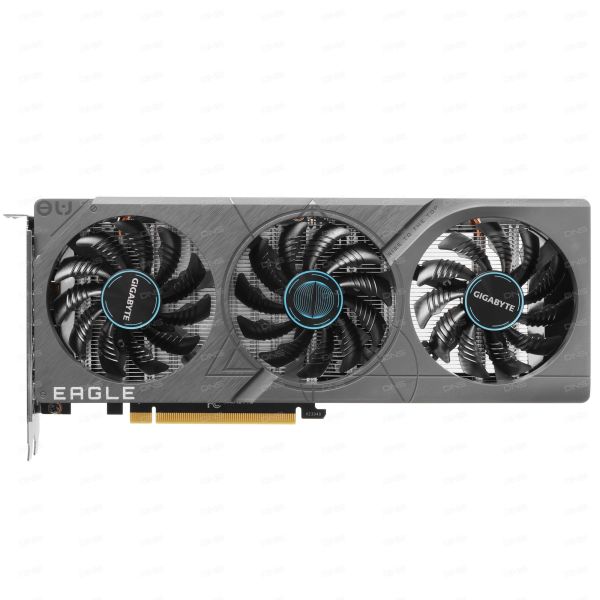

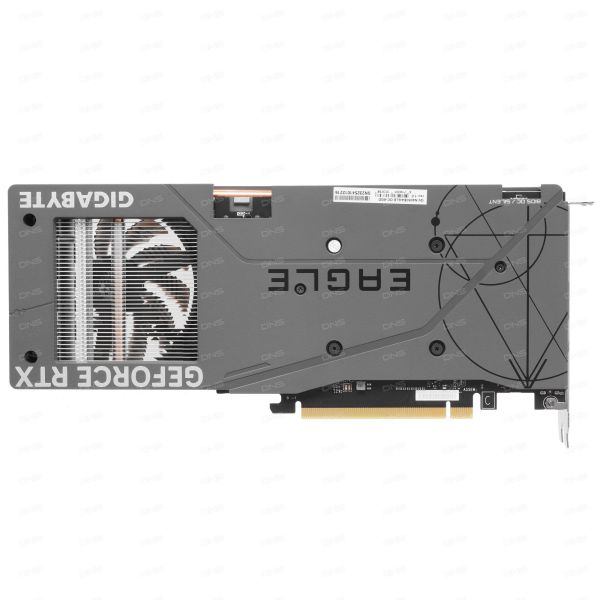

GIGABYTE GeForce RTX 4060 EAGLE OC graphics card [GV-N4060EAGLE OC-8GD]

Product ID: 74
(1)
SKU Code:
GV-N4060EAGLE OC-8GD
Specifications:
  • GPU: GeForce RTX 4060
  • Microarchitecture: NVIDIA Ada Lovelace
  • Video memory capacity: 8 GB
  • Memory type: GDDR6
GIGABYTE
$484
Add To Favorites
Compare

The GIGABYTE GeForce RTX 4060 EAGLE OC graphics card is designed for computer enthusiasts. It provides realistic and smooth graphics when working with professional programs and running games. The video card is based on the Ada Lovelace architecture. Fully implemented ray tracing improves image detail by improving reflections and shadow depth. Using proprietary CONTROL CENTER software, you can perform real-time status monitoring and parameter settings.

GIGABYTE GeForce RTX 4060 EAGLE OC supports processor overclocking up to 2505 MHz. WINDFORCE cooling system with three fans, radiator and heat pipes keeps the heating temperature low. Alternate rotation technology reduces turbulence and increases airflow pressure. Thanks to the 3D Active function, in low load conditions the fans stop and operate silently. The protective metal plate makes the video card resistant to deformation and mechanical stress.

Seller/manufacturer warranty36 months.
Typevideo card
ModelGIGABYTE GeForce RTX 4060 EAGLE OC
Manufacturer codeGV-N4060EAGLE OC-8GD
Colorblack
Designed for mining (cryptocurrency mining)no
LHRno
GPUGeForce RTX 4060
MicroarchitectureNVIDIA Ada Lovelace
Process technology5 nm
Standard video chip operating frequency1830 MHz
Turbo frequency2505 MHz
Number of all-purpose processors (ALU)3072
Number of texture units96
Number of rasterization units48
Ray tracing supportyes
Hardware-accelerated ray tracing (RT cores)24
Tensor cores96
Video memory capacity8 GB
Memory typeGDDR6
Memory bus width128 bits
Maximum memory bandwidth272 GB/sec
Effective memory frequency17000 MHz

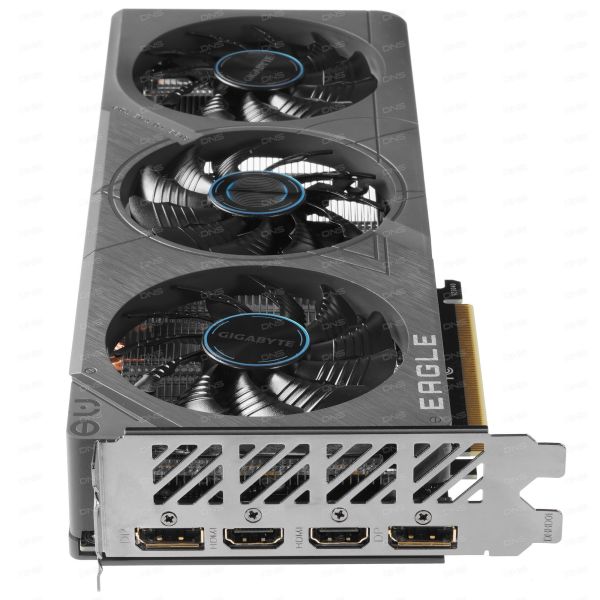

Type and number of video connectors2 x DisplayPort, 2 x HDMI
HDMI Version2.1a
DisplayPort Version1.4a
Number of monitors connected simultaneously4
Maximum resolution7680x4320 (8K Ultra HD)
Connection interfacePCI-E 4.0
Connector form factorPCIe x16
Number of PCI Express lanes8
Additional power connectors8 pin
Recommended power supply450 W
Cooling typeactive air
Type and number of installed fans3 axial
Liquid cooling radiatorno
Illumination of video card elementsno
RGB Syncno
LCD displayno
BIOS switchyes
Contentsdocumentation
Low Profile CardNo
Number of occupied expansion slots2
Video card length272 mm
Graphics card width115 mm
Video card thickness40 mm
Country of originChina
