ASRock AMD Radeon RX 6800 XT Phantom Gaming OC [RX6800XT PG 16GO]

Product ID: 65
(1)
SKU Code:
RX6800XT PG 16GO
Specifications:
  • GPU: Radeon RX 6800 XT
  • Microarchitecture: AMD RDNA 2
  • Video memory capacity: 16 GB
  • Memory type: GDDR6
Asrock
$714
Add To Favorites
Compare

The ASRock AMD Radeon RX 6800 XT Phantom Gaming OC Graphics Card [RX6800XT PG 16GO] provides high performance and graphics speed for demanding programs and games. It is based on AMD RDNA 2 architecture with ray tracing technology to create realistic images. In overclocking mode, the processor clock frequency can increase to 2065 MHz.

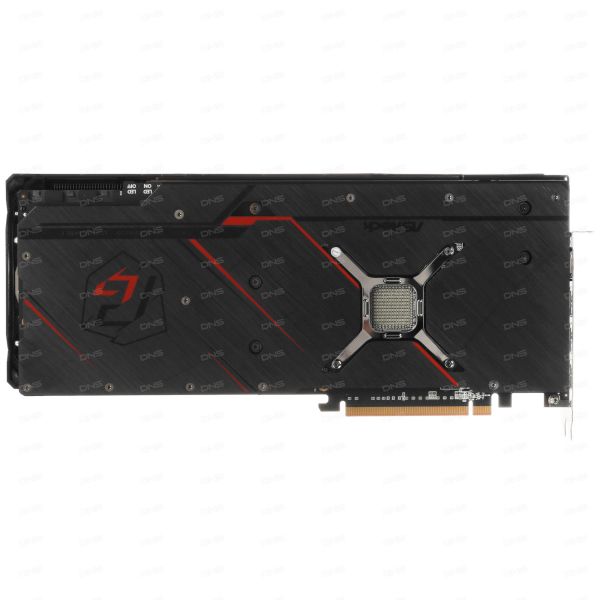

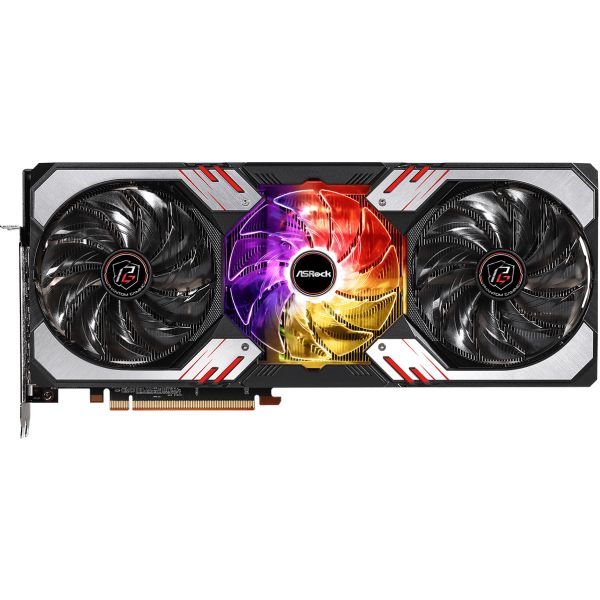

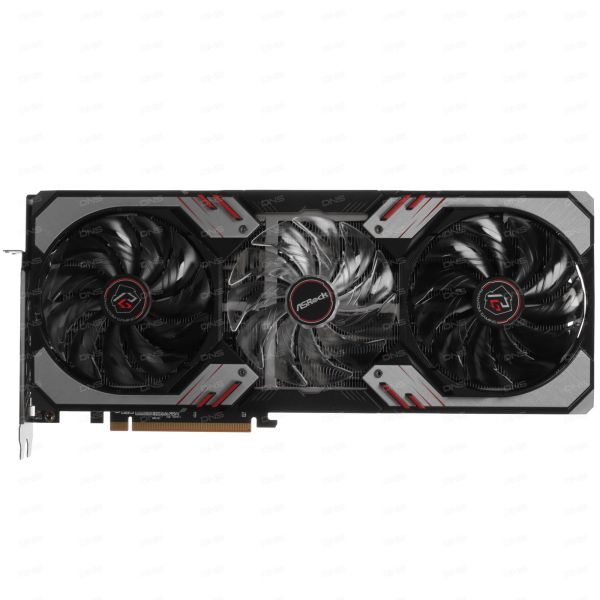

The Phantom Gaming 3X Cooling System features 3 fans, nickel-plated base, heatsink and heatpipes to ensure consistent heat dissipation from internal components. The 0dB Silent Cooling feature stops the fans when the computing load is low. ASRock Polychrome RGB backlight is designed to create personalized lighting effects. The back side of ASRock AMD Radeon RX 6800 XT Phantom Gaming OC features a metal plate to improve resistance to deformation.

Seller/manufacturer warranty36 months.
Typevideo card
ModelASRock AMD Radeon RX 6800 XT Phantom Gaming OC
Manufacturer codeRX6800XT PG 16GO
Colorblack
Designed for mining (cryptocurrency mining)no
LHRno
GPURadeon RX 6800 XT
MicroarchitectureAMD RDNA 2
Process technology7 nm
Standard video chip operating frequency1875 MHz
Turbo frequency2310 MHz
Number of all-purpose processors (ALU)4608
Number of texture units288
Number of rasterization units128
Ray tracing supportyes
Hardware-accelerated ray tracing (RT cores)72
Tensor coresno
Video memory capacity16 GB
Memory typeGDDR6
Memory bus width256 bits
Maximum memory bandwidth512 GB/sec
Effective memory frequency16000 MHz

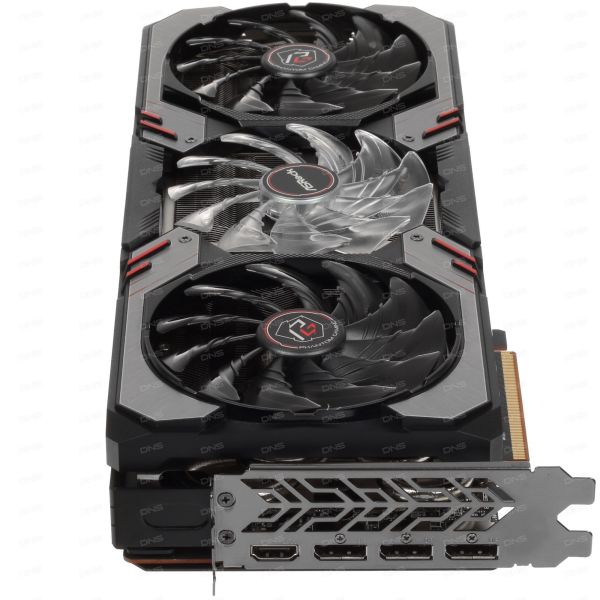

Type and number of video connectors3 x DisplayPort, HDMI
HDMI Version2.1
DisplayPort Version1.4
Number of monitors connected simultaneously4
Maximum resolution7680x4320 (8K Ultra HD)
Connection interfacePCI-E 4.0
Connector form factorPCIe x16
Number of PCI Express lanes16

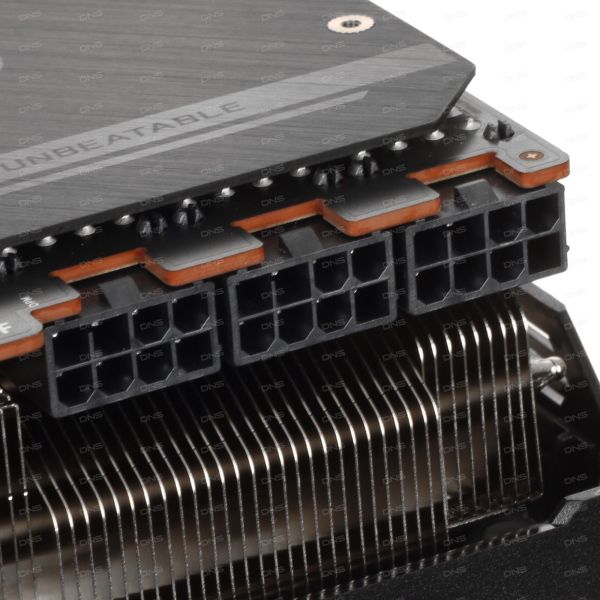

Additional power connectors3 x 8 pin
Recommended power supply800 W
Cooling typeactive air
Type and number of installed fans3 axial
Liquid cooling radiatorno
Illumination of video card elementsyes
RGB SyncASRock Polychrome
LCD displayno
BIOS switchno
Features, additionallyInfinity Cache - 128 MB, backlight switch
Contentsdocumentation
Low Profile CardNo
Number of occupied expansion slots2.8
Video card length330 mm
Graphics card width140 mm
Video card thickness56 mm
Weight1784 g
